  13. Snap Action Switch - V7 Series, SPDT, Long Lever, 21A, Quick Connect

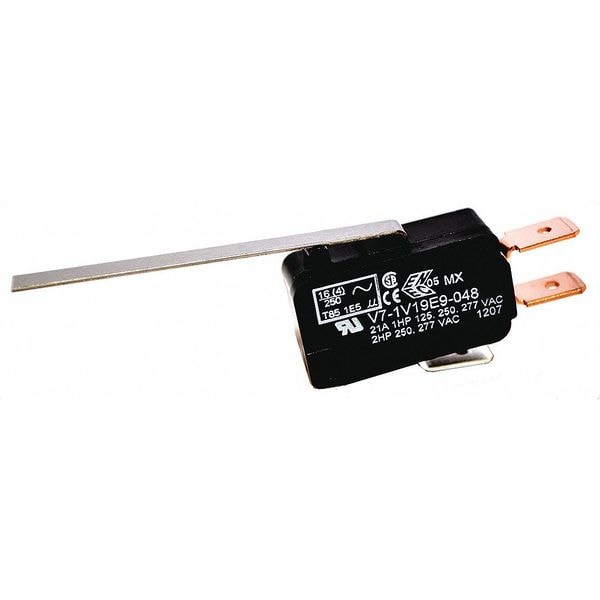

Honeywell Snap Action Switch - V7 Series, SPDT, Long Lever, 21A, Quick Connect V7-1V19E9-048 - main

Snap Action Switch - V7 Series, SPDT, Long Lever, 21A, Quick Connect

  • Mfr # V7-1V19E9-048

  • Zoro # G4552387

product price: $8.99
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Long
AC Contact Rating - Snap Action Switch
21 A 1 HP 125 V, 250 V, 277 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
2.34 in
Height - Snap Action Switch
0.63 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V7-1V19E9-048
Zoro #
G4552387
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
2.34 in
Height - Snap Action Switch
0.63 in
Width - Snap Action Switch
1.14 in
Depth - Snap Action Switch
0.4 in
Mounting Dimension - Snap Action Switch
0.87 in Centers
Length
1.14"
Mounting Dimension
0.41 x 0.87" Centers
Depth
0.4"
Actuator Length
2.34"
Height
0.63"
Body Width
1.14 in
Body Height
0.63 in
Body Depth
0.4 in
Overall Width
1.14 in
Overall Depth
0.4 in
Mounting Hole Diameter
1/8 in
Lever Actuator Length
2.34 in
Overall Height
0.63 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Long
AC Contact Rating - Snap Action Switch
21 A 1 HP 125 V, 250 V, 277 V
Contact Form- Switches
SPDT
Housing Material
PCT Polyester Thermoplastic
Over Travel
0.12 in
Operating Force
1.94 oz.
Operating Temp. Range
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
Electrical Connection - Snap Action Switch
1/4 in Quick Connect
Watertight - Snap Action Switch
No
Type of Actuator
Long Straight Lever
Voltage Rating
250VAC
Max. Pretravel
0.25 in
Standards
CSA, ENEC, RoHS, UL Listed
Series
V7
Release Force
0.1 ozf
Differential Travel
0.055 in
Contact Form
1NO/1NC
Current Rating
21A
Terminal Type
Quick Connect
AC Contact Rating
21 A @ 277 V
Operator Configuration
Straight
Contact Rating
21A 125-277V AC
Connection
Quick Connect Terminal
Current Rating - nominal
20A
Operating Temperature
-40°F (-40°C) to 185°F (85°C)
Differential-Travel - max
0.051 in (1.3mm) DT
Head Action
Spring Return, Standard
Connection Configuration
Spade Tab, 0.250 in.Wide x 0.032 in.Thick
Head
Lever
Force to Operate
2 oz (0.56N) OF
Type
Miniature Limit Switch
Pre-Travel - max
0.25 in (6.35mm) PT
Over-Travel
0.125 in (3.17mm) OT
Differential Travel - Maximum
0.055 in
Electrical Connection
Quick Connect
Body Material
Polyester
Actuator Style
Lever
Pretravel
0.25 in
Operating Temperature - Maximum
365 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Force - Maximum
1.94 ozf
Overtravel
0.12 in
Center Mounting Hole Distance
0.88 in

Description

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is constructed with a thermoplastic housing as specified. This switch features a long lever actuator and is suitable for use in applications requiring on/off limit or presence/absence detection. It offers versatile installation options with quick connect terminals and can be used where sensitive actuation or higher operating forces are required.

Key Features:

  • Contact Form: SPDT (1NO/1NC)
  • AC Contact Rating: 21A @ 125–277V AC, up to 1 HP at 125V, 250V, or 277V
  • Actuator Type: Long straight lever, length of 2.34"
  • Operating Force: Maximum of 1.94 ozf (0.56N)
  • Differential Travel: Maximum of 0.055 in; Pretravel maximum of 0.25 in; Overtravel of 0.12 in
  • Housing Material: PCT polyester thermoplastic
  • Electrical Connection: Quick connect spade tab terminals (0.250" wide x 0.032" thick)
  • Mounting Dimensions: Centers at 0.87", mounting hole diameter of 1/8"
  • Operating Temperature Range: -40°F (-40°C) to +185°F (+85°C), with options up to +347°F (+175°C)
  • Body Size: Width—1.14", Height—0.63", Depth—0.4"
  • Standards Compliance: CSA, ENEC, RoHS, UL Listed
