Shop HONEYWELL

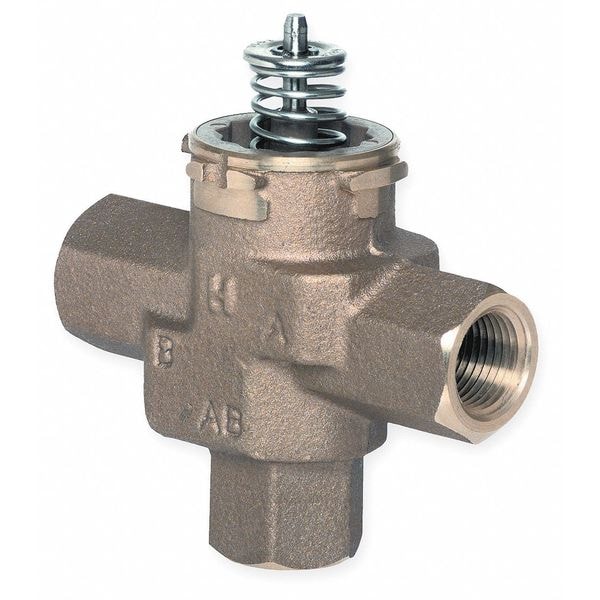

Three-Way 1/2 In, NPT, VC Valve Assembly

  • Mfr # VCZNB6100

  • Zoro # G4764623

product price:  $72.29
/ea

Key Features

Body Material
Bronze
Overall Height
5 11/32 in
Overall Length
3 7/8 in
Width (In.)
3 7/8 in
For Use With
Water or Glycol Solution 50% Max
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VCZNB6100
Zoro #
G4764623
UPC #
-
Country of Origin
Hungary

Dimensions

Overall Height
5 11/32 in
Overall Length
3 7/8 in
Width (In.)
3 7/8 in
Height (In.)
4 3/8 in
Connection Type/Size (In.)
(F)NPT 1/2
Depth (In.)
2 3/4 in
Overall Depth
2 3/4 in
Port Connection Size
1/2 in
Wire Rope Length
3 7/8 in

Details

Item
Hydronic Globe Valve
Body Material
Bronze
For Use With
Water or Glycol Solution 50% Max
Includes
Installation Manual
Specifications
Quick, Open, Linear, And Equal Percentage Control Characteristics Available. Bi-Directional Installation. No Tools Required For Actuator Installation Or Removal. Actuator Removal Does Not Require Draining System. Service Is By Replacement Of Cartridge, Not Valve Body.
Description/Special Features
Three-Way Bodies May Be Used In Either Diverting Or Mixing Applications, Replacing The Cartridge Rebuilds The Valve, Linearized Cartridge For Use With Floating Actuators
Type
3-Way, Cartridge Cage
Safe Working Water PSI
300 psi
Coefficient of Volume
3.7
Agency Compliance
CRN
Max. Water Temp. (Deg. F)
34 to 203
Application
Zone Control
Includes Actuator
Actuator Not Included
Valve Action
Normally Closed, Normally Open
Stem Travel
13/32 in
Flow Characteristic
Linear
Manufacturer Series
6000
Body Pattern
Three-Way
Stem Material
Stainless Steel
Port Connection Type
NPT
Operating Temperature - Maximum
203 Degrees F
Packing Material
EPDM
Resistance Properties
Water Hammer Resistant
For Media
Water-Glycol Solution to 50%
Coefficient of Volume (Cv)
3.7
Cartridge Material
Plastic
Port Connection Gender
Female
Configuration
Tee
Close-Off Pressure
60 psi
Operating Temperature - Minimum
34 Degrees F
Specific Valve Action
Stem Up to Close
Gasket Material
EPDM
Seat Material
EPDM

Description

Hydronic Globe Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal Not Applicable, Actuator Input Voltage Not Applicable, Actuator Return Action Not Applicable, Actuator Type Not Applicable, Application Zone Control, Body Material Bronze, Body Pattern Three-Way, Cartridge Material Plastic, Close-Off Pressure 60 psi, Coefficient of Volume (Cv) 3.7, Configuration Tee, Flow Characteristic Linear
