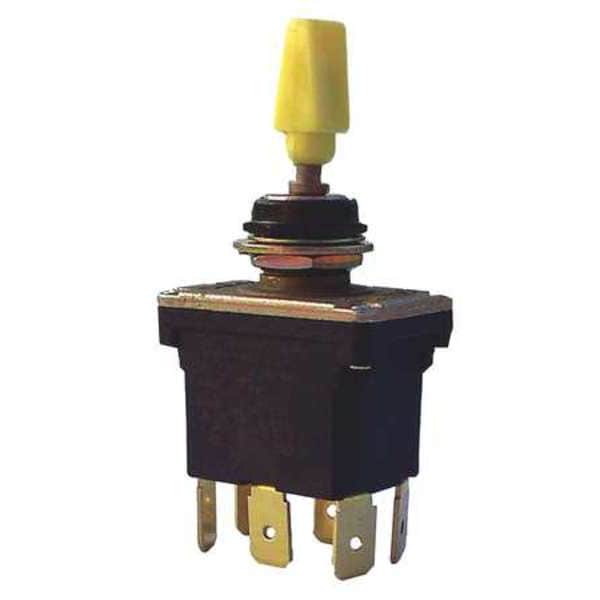

Toggle Switch (ON)-OFF-(ON) DPDT 10A @ 277V Quick Connect Terminals (Discontinued)
- Mfr # 32NT391-7-C08
- Zoro # G4723756
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
32NT391-7-C08
Zoro #
G4723756
UPC #
-
Country of Origin
United States
Dimensions
Stem Length
0.47 in
Actuator Length
0.68 in
Stem Dia. and Thread Size
15/32-32UNS
Mounting Hole Diameter
0.5 in
Details
Switch Function
Momentary On/Maintained Off/Momentary On
Contact Form
DPDT
HP
1/2 hp
Actuator Style
Flattened Lever
Amps
10A @ 125VAC, 10A @ 250VAC, 18A @ 28VDC
Number of Connections
6
Terminals
Quick Connect
Recommended Use
Aerial and Scissor Lifts, Agriculture and Material-Handling Equipment, Cranes and Construction, Factory-Floor Control Units, Machine Tool Equipment Manufacturers, Truck Mounted Tele-Handlers
Standards
CE, CSA, UL Listed
Operating Temp. Range
-85 Degrees to 160 Degrees F
Stem Color
Silver
AC Contact Rating
10A @ 277V AC
Item
Toggle Switch
DC Contact Rating
18A @ 28V DC
Includes
Thermoplastic Case
Mounting Hole
0.50 in dia
Actuator Color
Yellow
Product Type
Toggle Switch
Horsepower
1/2 hp
Terminal Connection Type
Quick Connect Tab
Description
Toggle Switch, Contact Form DPDT, Number of Connections 6, Switch Function Momentary On/Off/Momentary On, AC Contact Rating 10A @ 277V AC, HP 1/2 hp, Terminals Quick Connect, Mounting Hole 0.50 in dia, DC Contact Rating 18A @ 28V DC, Actuator Style Flattened Lever, Actuator Length 0.68 in, Stem Length 0.47 in, Stem Dia. and Thread Size 15/32-32UNS, Operating Temp. Range -85 Degrees to 160 Degrees F, Actuator Color Yellow, Stem Color Silver, Standards CE, CSA, UL Listed
