Shop HONEYWELL

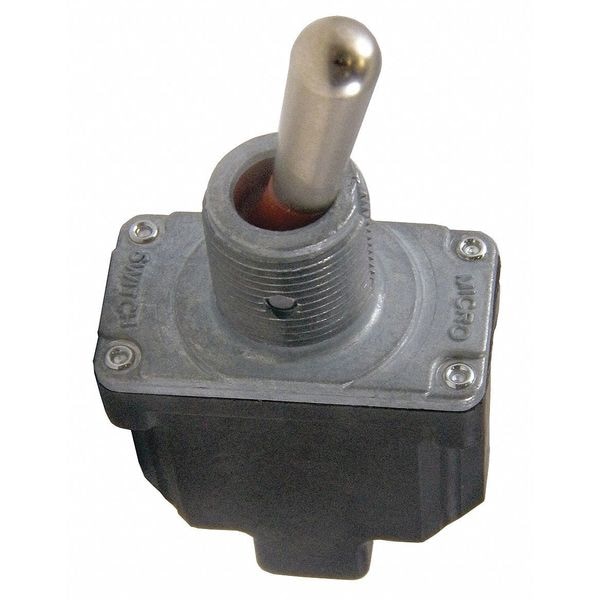

Toggle Switch, SPDT, 3 Connections, Maintained On/Maintained On, 1 hp, 15A at 277V AC

  • Mfr # 1NT1-3

  • Zoro # G4632117

product price:
$
28.15
/ea

Key Features

Switch Function
Maintained On/Maintained On
Contact Form
SPDT
HP
1 hp
Actuator Style
Standard Lever
Amps
15A @ 125VAC, 15A @ 250VAC, 15A @ 28VDC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1NT1-3
Zoro #
G4632117
UPC #
-
Country of Origin
United States
Switch Function
Maintained On/Maintained On
Contact Form
SPDT
HP
1 hp
Actuator Style
Standard Lever
Amps
15A @ 125VAC, 15A @ 250VAC, 15A @ 28VDC
Number of Connections
3
Terminals
Screw
Special Features
Step Base
Actuator Color
Silver
Operating Temp. Range
-85 Degrees to 160 Degrees F
Includes
Bushing, Case, Cover, Toggle Lever
Recommended Use
Aerial and Scissor Lifts, Agriculture and Material-Handling Equipment, Cranes and Construction, Factory-Floor Control Units, Machine Tool Equipment Manufacturers, Truck Mounted Tele-Handlers
DC Contact Rating
20 A @ 28 V
Item
Toggle Switch
Standards
CE, CSA, UL Listed
Stem Color
Silver
AC Contact Rating
15 A @ 125 V, 15 A @ 250 V
Mounting Hole
0.50 in dia
IP Rating
IP67, IP68
Product Type
Toggle Switch
Series
NT
Number of Positions
2
Operator Illumination Style
Non-Illuminated
Metal Actuator Finish
Silver
Actuator Material
Metal
Horsepower
1 hp @ 250V AC, 1/2 hp @ 125V AC
NEMA Enclosure Rating
13, 3, 3R, 4
Resistance Properties
Dust Resistant, Shock Resistant, Watertight, Temperature Resistant, Vibration Resistant
Terminal Connection Type
Screw Terminals
Switch Function Configuration
On/On
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Base Type
Step
Number of Poles
1

Description

Toggle Switch, Contact Form SPDT, Number of Connections 3, Switch Function On/On, AC Contact Rating 15 A @ 125 V, 15 A @ 250 V, HP 1 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating 20 A @ 28 V, Actuator Style Standard Lever, Actuator Length 0.67 in, Stem Length 0.47 in, Stem Dia. and Thread Size 0.470 in, Operating Temp. Range -85 Degrees to 160 Degrees F, Actuator Color Silver, Stem Color Silver, Special Features Step Base, Standards CE, CSA, UL Listed
