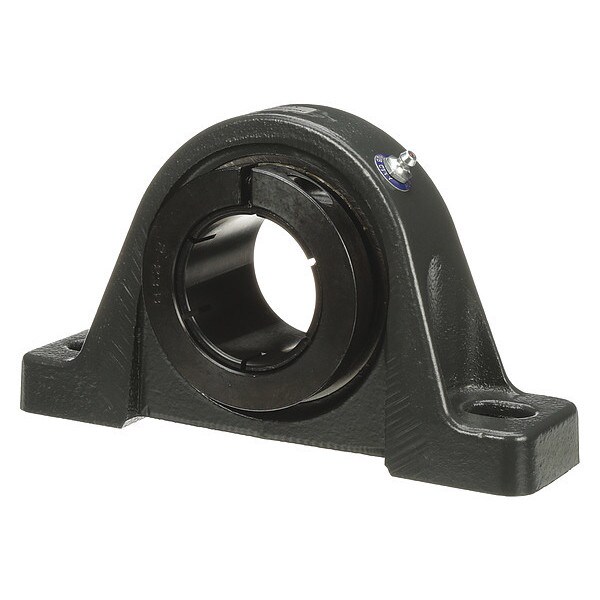

Pillow Block Bearing, Ball, 2-3/16" Bore (Discontinued)

Mfr # PB281WAHx2-3/16
Zoro # G4086521

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Specifications

Product Information

MFR #	PB281WAHx2-3/16	Zoro #	G4086521
UPC #	-	Country of Origin	China
MFR #	PB281WAHx2-3/16
Zoro #	G4086521
UPC #	-
Country of Origin	China

Dimensions

Bore Dia.	2 3/16 in	Overall Height	5 in
Dimension M	1 9/16 in	Dimension A	2 1/2 in
Dimension D	4 3/4 in	Dimension E Min.	3 1/4 in
Dimension F	9 in	Dimension S	2 7/16 in
Dimension L	2 25/32 in	Dimension J	5/8 in
Overall Length	9 in	Dimension C	3 1/2 in
Bolt Size	5/8 in	Dimension G	2 1/4 in
Dimension E Max.	4 1/8 in	Dimension H	7/8 in
Dimension B	5 in	Overall Width	2 9/16 in
Bore Dia.	2 3/16 in
Overall Height	5 in
Dimension M	1 9/16 in
Dimension A	2 1/2 in
Dimension D	4 3/4 in
Dimension E Min.	3 1/4 in
Dimension F	9 in
Dimension S	2 7/16 in
Dimension L	2 25/32 in
Dimension J	5/8 in
Overall Length	9 in
Dimension C	3 1/2 in
Bolt Size	5/8 in
Dimension G	2 1/4 in
Dimension E Max.	4 1/8 in
Dimension H	7/8 in
Dimension B	5 in
Overall Width	2 9/16 in

Details

Bearing Insert Type	Ball	Shaft Locking Type	Concentric Locking Collar
Bearing Housing Material Type	Cast Iron	Bearing Insert Material	52100 Chrome Steel
Bolt Hole Center-to-Center	6 29/32 in	Mounting Surface to Shaft Center	2 1/2 in
Series	Standard Duty	Number of Bolts	2
Housing Material	Cast Iron	Bearing Locking Type	Concentric Locking Collar
Temp. Range	-32 Degrees to 200 Degrees F	Finish	Painted
Static Load Capacity	6800 lb	Dynamic Load Capacity	2510 lb
Bearing Lubrication	Mobil Mobilux #2 or NLGI #2 Equivalent	Includes	Nitrile Contact Seal
Locking Type	Concentric Locking Collar	Max. Speed	2500 rpm
Item	Pillow Block Bearing
Bearing Insert Type	Ball
Shaft Locking Type	Concentric Locking Collar
Bearing Housing Material Type	Cast Iron
Bearing Insert Material	52100 Chrome Steel
Bolt Hole Center-to-Center	6 29/32 in
Mounting Surface to Shaft Center	2 1/2 in
Series	Standard Duty
Number of Bolts	2
Housing Material	Cast Iron
Bearing Locking Type	Concentric Locking Collar
Temp. Range	-32 Degrees to 200 Degrees F
Finish	Painted
Static Load Capacity	6800 lb
Dynamic Load Capacity	2510 lb
Bearing Lubrication	Mobil Mobilux #2 or NLGI #2 Equivalent
Includes	Nitrile Contact Seal
Locking Type	Concentric Locking Collar
Max. Speed	2500 rpm
Item	Pillow Block Bearing

Description

Pillow Block Bearing, Bearing Insert Material 52100 Chrome Steel, Bearing Insert Type Ball, Housing Material Cast Iron, Overall Height 5 in, Overall Length 9 in, Overall Width 2 9/16 in, Shaft Locking Type Concentric Locking Collar
