Shop HUBBELL KILLARK

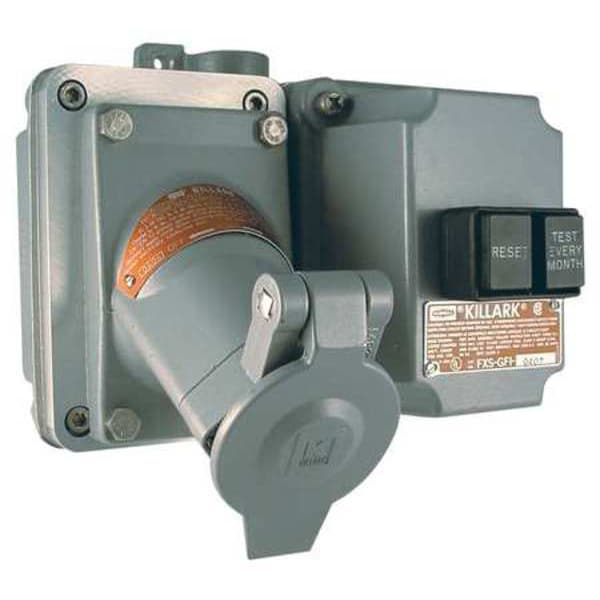

3W 2P 20A Hazardous Location GFCI Receptacle 120VAC 5-20R

  • Mfr # UGRGF111

  • Zoro # G4143291

product price:
$
1,928.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
NEMA Rating
3, 7C, 7D, 9E, 9F, 9G
Number of Wires
3
Number of Poles
2
NEMA Type
5-20R
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UGRGF111
Zoro #
G4143291
UPC #
783936784564
Country of Origin
United States

Dimensions

Hub Diameter
0.75 in
Hub Size
3/4"
Overall Depth
6 5/8 in
Overall Height
6 13/16 in
Overall Width
7 9/16 in

Details

Item
Encolsed GFCI Receptacle
Voltage
120V AC
NEMA Rating
3, 7C, 7D, 9E, 9F, 9G
Number of Wires
3
Number of Poles
2
NEMA Type
5-20R
Amps
20 A
Material
Copper-Free Aluminum
Finish
Epoxy Polyester
Screws
Stainless Steel
Hz
60
Standards
UL 943
Feed-Thru Hub (In.)
3/4 in
Hub Type
Feed Through
NEMA Enclosure Rating
3, 7CD, 9FG
For Environment
Hazardous Location
Number of Gangs
2
Resistance Properties
Weather Resistant
NEMA Receptacle Configuration
5-20R
Features
Factory-Sealed
Voltage Rating
125V AC
GFCI
Yes
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Current Rating
20 A
Circuit Breaker
Yes
Housing Material Finish
Epoxy Polyester Coated
Phase
1
Includes Mounting Hardware
Yes
Housing Material
Copper-Free Aluminum
Amperage Rating
20
Hazardous Rating(s)
Class 1, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
Series
UGRGF
CSA File Number
LR11714

Description

GFCI Receptacle, Circuit Breaker Yes, Current Rating 20 A, GFCI Yes, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating Not Applicable, Housing Material Copper-Free Aluminum, Hub Type Feed Through, NEMA Enclosure Rating 3, 7CD, 9FG, NEMA Receptacle Configuration 5-20R, Number of Gangs 2, Number of Poles 2, Number of Wires 3, Resistance Properties Weather Resistant, Voltage Rating 125V AC
