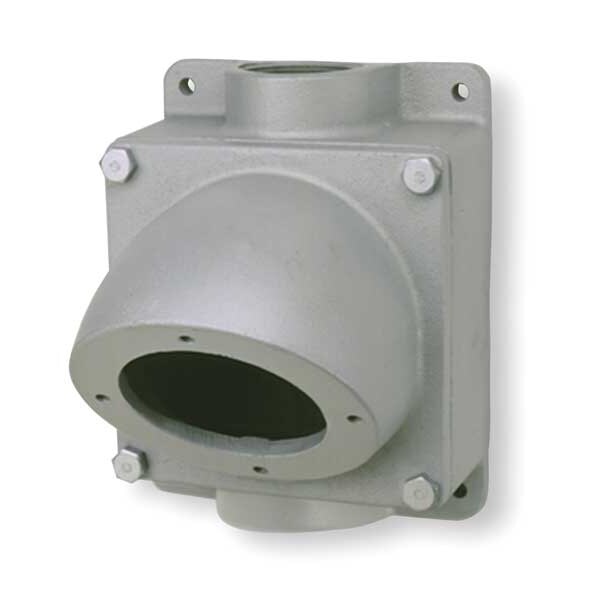

Hubbell Killark Back Box, 200 A, 250/600V AC, Three Phase, 3 Pole, Style 2 Grounding, NEMA 3, 4, 4X VJC78 - main

Back Box, 200 A, 250/600V AC, Three Phase, 3 Pole, Style 2 Grounding, NEMA 3, 4, 4X

  • Mfr # VJC78

  • Zoro # G1497072

product price: $470.99
/ea
Free Shipping & Returns

Key Features

Current Rating
200 A
Phase
Three
Material
Copper-Free Aluminum
IP Rating
Not Rated
NEMA Enclosure Rating
3, 4, 4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VJC78
Zoro #
G1497072
UPC #
783936832906
Country of Origin
China

Dimensions

Width
6 1/8 in
Length
8 in
Length (Straight Wireway)
8 in
Overall Width
9.88 in
Overall Length
8.19 in
Hub Diameter
2.5 in
Overall Height
10.81 in
Hub Size
2-1/2"

Details

Item
Back Box
Current Rating
200 A
Phase
Three
Material
Copper-Free Aluminum
IP Rating
Not Rated
NEMA Enclosure Rating
3, 4, 4X
Includes
Mounting Feet
Wire Connection Type
Screw Terminals
Flange Type
Flanged
For Use With
Versamate Series Receptacles
Grounding Style
Style 2
Housing Color
Gray
Cap Type
No Cap or Cover
Resistance Properties
Moisture Resistant
Angle
Straight
Number of Wires
4
Number of Poles
3
Box Type
Feed Through
Use With
Hubbell Killark NEC Pin & Sleeve Devices
Hub
2 1/2 in
Standards
CSA LR111846, UL E10757
Mount Type
Surface
Box Angle
45 Degrees
For Environment
Corrosive, Hazardous Location
Compatible with Series
Versamate(R)
Hub Type
Feed Through
Number of Gangs
1
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G
For Location
Indoor, Outdoor
Finish
Epoxy/Polyester
Material Type
Metallic
Voltage Rating
250/600V AC
Market
Industrial
Series
VersaMate

Description

Back Box, Box Angle 45 Degrees , Current Rating 200 A, Hub Diameter 2.5 in, Hub Type Feed Through, Material Copper-Free Aluminum, Mount Type Surface, NEMA Enclosure Rating 3, 4, 4X, Number of Gangs 1, For Use With Versamate Series Receptacles, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Housing Color Gray, Includes Mounting Feet, Material Type Metallic, Resistance Properties Moisture Resistant, Standards CSA LR111846, UL E10757
