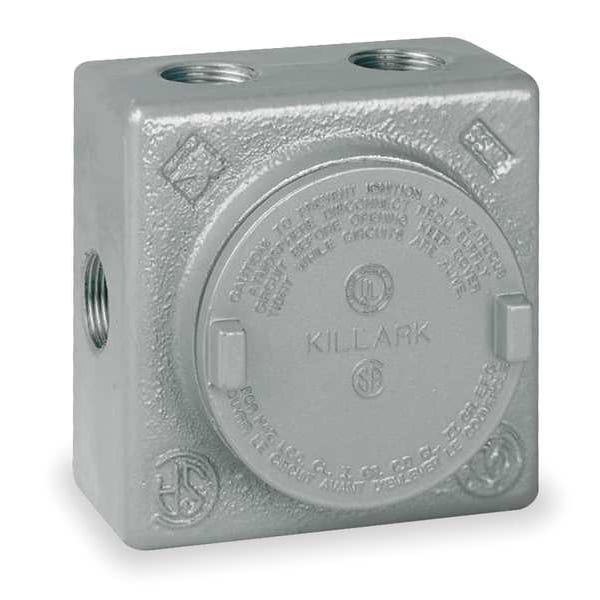

Hubbell Killark Body, Outlet, 3/4 In GRSS-2 - main

Body, Outlet, 3/4 In

  • Mfr # GRSS-2

  • Zoro # G2964805

product price: $133.99
/ea
Free Shipping & Returns

Key Features

Hub Size
3/4
Series
GR Outlet Bodies
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Includes
Blank Cover
Special Features
Internal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw. Cast-in brackets on cover for use with breaker-bar tools.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GRSS-2
Zoro #
G2964805
UPC #
783936230139
Country of Origin
Canada

Dimensions

Hub Size
3/4
Max. Conduit Size
3/4 in
Length
7.875 in
Width
5.875 in
Height
4 in
Dimensions
7.875 in x 5.875 in x 4 in
Each - Width
5.875 in
Size
7.875 in x 5.875 in x 4 in
Panel Width
4.63 in
Panel Height
2.25 in
Nominal Depth
4 in
Nominal Width
4 in
Overall Depth
3.5 in
Overall Width
4.63 in
Nominal Height
4 in
Overall Height
4.63 in
Usable Opening Depth
2.38 in

Details

Item
Outlet Body
Series
GR Outlet Bodies
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Includes
Blank Cover
Special Features
Internal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw. Cast-in brackets on cover for use with breaker-bar tools.
Color
Gray
Standards
CSA File No. LR11716, UL File No. E10514
Product Type
Outlet Body with Cover
Finish Type
Powder Epoxy Paint
Package Net Weight
2.63
CSA File Number
LR11716
Application
Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Finish
Powder Epoxy Paint
Cover Type
Blank
Type
Outlet Body With Cover
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
UL File Number
E10514
Cover Closure Type
Screw On
NEMA Enclosure Rating
Not Rated
Enclosure Material
Copper-Free Aluminum
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Cover Style
Solid
Closure Method
Screws
Includes Knockouts
Knockouts Included

Description

This Hubbell Killark GRSS-2 Outlet Body is the perfect solution for when you need to connect an outlet in a 3/4" conduit. This aluminum and copper free product has a maximum conduit size of 3/4". It comes with a cover that allows you to complete the look of your wall plates. The powder epoxy paint finish resists scratches, corrosion and fading. The silver color makes it an attractive option for home decor. The Hubbell Killark GRSS-2 Outlet Body is the reliable product that will serve your needs well.
