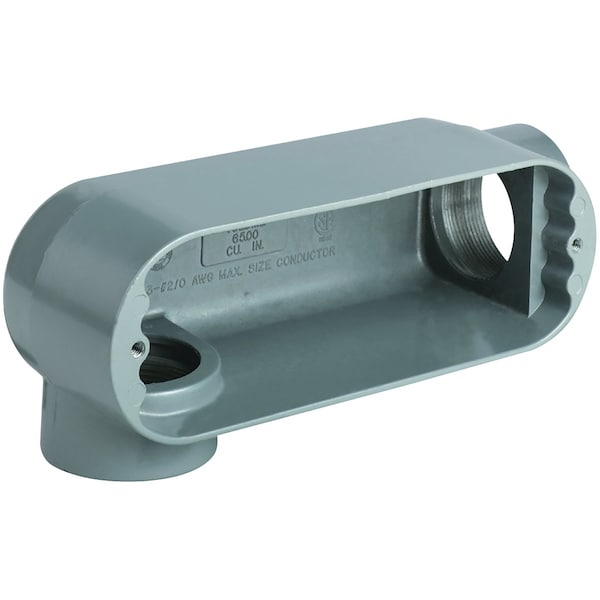

Hubbell Killark Conduit Bdy, 3-1/2", LR OLR-9M - main

Conduit Bdy, 3-1/2", LR

  • Mfr # OLR-9M

  • Zoro # G1103002

product price: $183.99
/ea
Free Shipping & Returns

Key Features

Hub Size
3-1/2
Series
O Series
Material
Iron
Conduit Outlet Body Capacity
3.0 cu in
Special Features
Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 292 cu. in.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OLR-9M
Zoro #
G1103002
UPC #
783936480701
Country of Origin
India

Dimensions

Hub Size
3-1/2
Width
8 in
Height
6 in
Length
17 in
Dimensions
17 in x 8 in x 6 in
Each - Width
8.000 in

Details

Item
Conduit Bdy,3-1/2",LR
Series
O Series
Material
Iron
Conduit Outlet Body Capacity
3.0 cu in
Special Features
Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 292 cu. in.
Color
Gray
Finish
Powder Epoxy Paint
Application
To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Hazardous Location Rating
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Finish Type
Powder Epoxy Paint
UL File Number
E3397
UPC
783936000000
Package Net Weight
23
Hub Pattern
LR
Type
Conduit Body
CSA File Number
LR11852
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).

Description

Conduit Bdy,3-1/2 In.,LR
