  13. Conduit Outlet Body, Aluminum, C

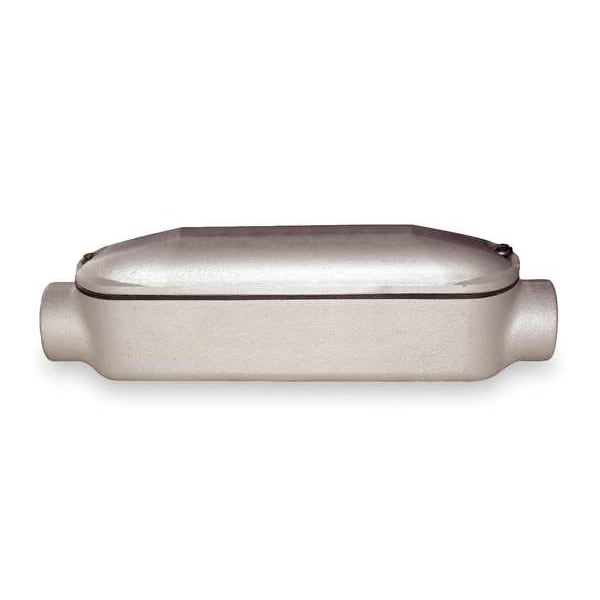

Hubbell Killark Conduit Outlet Body, Aluminum, C MOC-8 - main

Conduit Outlet Body, Aluminum, C

  • Mfr # MOC-8

  • Zoro # G6601305

product price: $718.99
/ea
Free Shipping & Returns

Key Features

Conduit Outlet Body Type
Conduit Outlet Body
Hazardous Location
No
Hub Size
3
Series
Moguls
Conduit Outlet Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MOC-8
Zoro #
G6601305
UPC #
783936555201
Country of Origin
Mexico

Dimensions

Hub Size
3
Conduit Outlet Body Hub Size
3 in
Conduit Outlet Hub Size
3"
Compatible Conduit Trade Size
3 in
Trade Size
3 in
Thread Size
3 in
Overall Height
6 in
Overall Length
28 in
Overall Width
5 in
Length
28 in
Width
5.000 in
Height
6 in
Each - Width
5.000 in
Dimensions
28 in x 5 in x 6 in

Details

Item
Conduit Outlet Body
Conduit Outlet Body Type
Conduit Outlet Body
Hazardous Location
No
Series
Moguls
Conduit Outlet Body Material
Aluminum
Conduit Outlet Body Style
C
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Conduit Outlet Body Capacity
758.4 cu in
Conduit Outlet Body Hub Style
Threaded
For Use With
IMC, RMC
Special Features
A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Volume is 467 cu. in.
Color
Gray
Back Type
Flat
Standards
CSA, UL
Form
Form 85
Finish
Powder Epoxy Paint
Body Style
C
Body Capacity
758.4 cu in
Hub Style
Threaded
Shape
C
Connection Type
Threaded
Compatible Conduit Type
IMC, RMC
Thread Type
NPT
Thread Gender
Female
Body Type
Conduit Outlet Body
Number of Hubs
2
Connection Orientation
Straight
Cover Included
Yes
Gasket Included
Yes
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Finish Type
Powder Epoxy Paint
Type
Mogul Conduit Body With Cover & Gasket
Hazardous Location Rating
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Package Net Weight
19.2
Hub Pattern
C
Application
Mogul fittings are for use with rigid and IMC raceways. Use where standard conduit bodies do not provide adequate access and wiring area for the pulling of large and heavy conductors. For right angle bends where splices, pulls, and taps are needed in a we

Description

Conduit Outlet Body, Overall Width 5 in, Overall Height 6 in, Overall Length 28 in, Trade Size 3 in, Compatible Conduit Trade Size 3 in, Hub Size 3 in, Aluminum, Moguls, Compatible Conduit Type IMC, RMC, Back Type Flat, Body Capacity 758.4 cu in, Body Style C, Body Type Conduit Outlet Body, Color Gray, Connection Orientation Straight, Connection Type Threaded, Cover Included Yes, Finish Powder Coated, For Use With IMC, RMC, Gasket Included Yes, Hazardous Location No, Hub Style Threaded
