  13. Conduit Outlet Body, Iron, LL, 1/2 In.
Hubbell Killark Conduit Outlet Body, Iron, LL, 1/2 In. LL17 - main

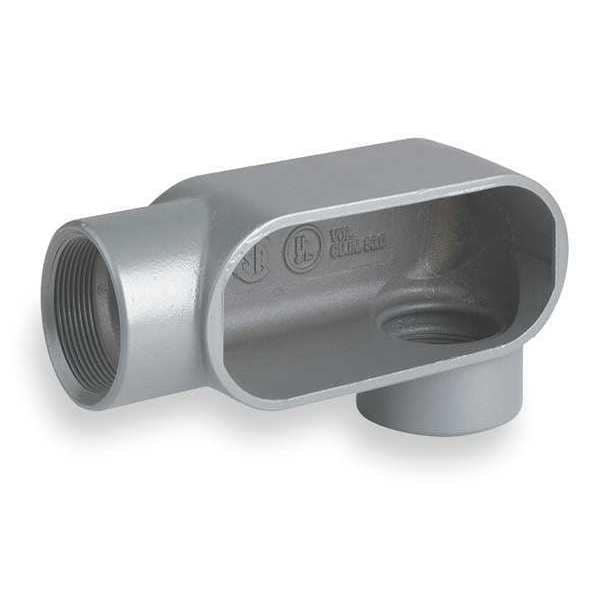

Conduit Outlet Body, Iron, LL, 1/2 In.

  • Mfr # LL17

  • Zoro # G2701824

product price: $15.85
/ea

Key Features

Conduit Outlet Body Type
Conduit Outlet Body
Hazardous Location
Yes
Hub Size
1/2 in
Series
Duraloy 7
Conduit Outlet Body Material
Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LL17
Zoro #
G2701824
UPC #
783936011103
Country of Origin
Mexico

Dimensions

Hub Size
1/2 in
Conduit Outlet Body Hub Size
1/2 in
Conduit Outlet Hub Size
1/2"
Compatible Conduit Trade Size
1/2 in
Overall Length
6 7/8 in
Overall Width
3 3/4 in
Overall Height
5 1/2 in
Thread Size
1/2 in
Trade Size
1/2 in
Height
5.5 in
Width
3.750 in
Length
6.88 in
Dimensions
6.88 in x 3.75 in x 5.5 in
Each - Width
3.750 in

Details

Conduit Outlet Body Type
Conduit Outlet Body
Item
Conduit Outlet Body
Hazardous Location
Yes
Series
Duraloy 7
Conduit Outlet Body Material
Iron
Conduit Outlet Body Style
LL
Material
Iron
Conduit Outlet Body Capacity
4.0 cu in
Conduit Outlet Body Hub Style
Threaded
For Use With
IMC, RMC
Special Features
Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Color
Gray
Back Type
Flat
Standards
CSA, UL
Form
Form 7
Body Style
LL
Shape
LL
Body Type
Conduit Outlet Body
Compatible Cover
170, 170C, 170CG, 170CGSA, 170CSA, 170G, 170GSA, 170SA
Thread Gender
Female
Connection Type
Threaded
Compatible Conduit Type
IMC, RMC
Finish
Powder Coated
Weight
0.9 lb
Body Capacity
4 cu in
Thread Type
NPT
Hazardous Location Rating
Class I, Division 2, Class I, Zone 2
Connection Orientation
90 Degrees
Number of Hubs
2
Hub Style
Threaded
Finish Type
Powder Epoxy Paint
Type
Conduit Body
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Application
To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Hub Pattern
LL
UL File Number
E3397
CSA File Number
LR11852

Description

Conduit Outlet Body, Overall Width 3 3/4 in, Overall Height 5 1/2 in, Overall Length 6 7/8 in, Weight 0.9 lb, Trade Size 1/2 in, Compatible Conduit Trade Size 1/2 in, Hub Size 1/2 in, Compatible Cover 170, 170C, 170CG, 170CGSA, 170CSA, 170G, 170GSA, 170SA, Iron, Duraloy 7, Compatible Conduit Type IMC, RMC, Back Type Flat, Body Capacity 4 cu in, Body Style LL, Body Type Conduit Outlet Body, Color Gray, Connection Orientation 90 Degrees , Connection Type Threaded, Finish Powder Coated
