  13. Conduit Outlet Body, LL, 1 In.

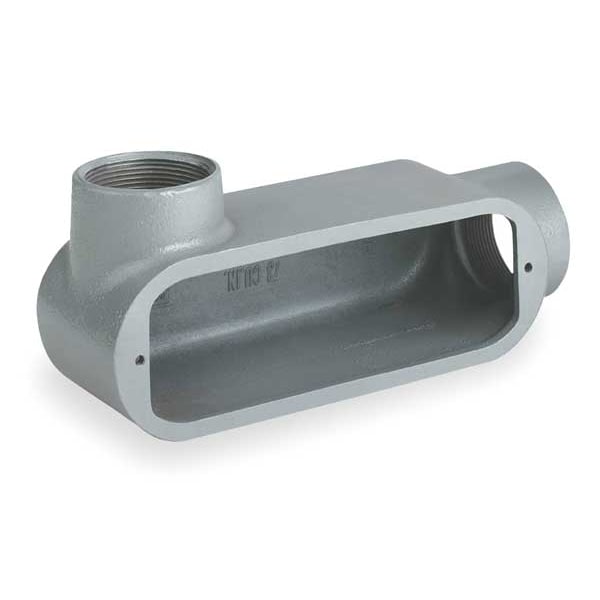

Hubbell Killark Conduit Outlet Body, LL, 1 In. OLL-3 - main

Conduit Outlet Body, LL, 1 In.

  • Mfr # OLL-3

  • Zoro # G2553171

product price: $17.69
/ea

Key Features

Conduit Outlet Body Type
Conduit Outlet Body
Hazardous Location
Yes
Hub Size
1
Series
O Series
Conduit Outlet Body Material
Copper Free Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OLL-3
Zoro #
G2553171
UPC #
783936490434
Country of Origin
United States

Dimensions

Hub Size
1
Conduit Outlet Body Hub Size
1 in
Conduit Outlet Hub Size
1"
Overall Height
3 3/4 in
Compatible Conduit Trade Size
1 in
Overall Width
7 in
Trade Size
1 in
Overall Length
11 in
Thread Size
1 in
Height
3.75 in
Length
11 in
Width
7.000 in
Each - Width
7.000 in
Dimensions
11 in x 7 in x 3.75 in

Details

Conduit Outlet Body Type
Conduit Outlet Body
Item
Conduit Outlet Body
Hazardous Location
Yes
Series
O Series
Conduit Outlet Body Material
Copper Free Aluminum
Conduit Outlet Body Style
LL
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Conduit Outlet Body Capacity
12.0 cu in
Includes
Stainless Steel Screws
Conduit Outlet Body Hub Style
Threaded
For Use With
IMC, RMC
Special Features
Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 12 cu. in.
Color
Gray
Back Type
Flat
Standards
CSA, UL
Form
Form 7
Finish
Powder Epoxy Paint
Hazardous Location Rating
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Body Style
LL
Shape
LL
Body Type
Conduit Outlet Body
Number of Hubs
2
Compatible Conduit Type
IMC, RMC
Body Capacity
12 cu in
Thread Gender
Female
Connection Type
Threaded
Connection Orientation
90 Degrees
Thread Type
NPT
Hub Style
Threaded
Compatible Cover
OL-30
Hub Pattern
LL
UL File Number
E3397
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Type
Conduit Body
Application
To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Carton Quantity
5
Finish Type
Powder Epoxy Paint
CSA File Number
LR11852
Package Net Weight
0.54

Description

Conduit Outlet Body, Overall Width 7 in, Overall Height 3 3/4 in, Overall Length 11 in, Trade Size 1 in, Compatible Conduit Trade Size 1 in, Hub Size 1 in, Compatible Cover OL-30, Aluminum, O, Compatible Conduit Type IMC, RMC, Back Type Flat, Body Capacity 12 cu in, Body Style LL, Body Type Conduit Outlet Body, Color Gray, Connection Orientation 90 Degrees , Connection Type Threaded, Finish Powder Coated, For Use With IMC, RMC, Hazardous Location Yes
