  12. /
  13. Push Button Control Stations
  14. /
  15. Control Station, 1/2 In, 10A at 600V

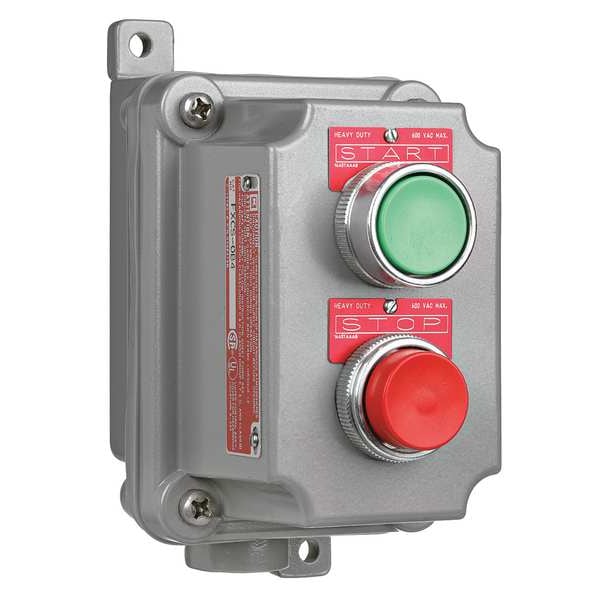

Hubbell Killark Control Station, 1/2 In, 10A at 600V FXCS-4B4 - main

Control Station, 1/2 In, 10A at 600V

  • Mfr # FXCS-4B4

  • Zoro # G2719701

product price: $724.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
2
Contact Form
1NO/1NC
Legend
Start/Stop
Type of Operator
Push Button
Number of Pilot Lights
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FXCS-4B4
Zoro #
G2719701
UPC #
783936201931
Country of Origin
United States

Dimensions

Hub Size
1/2 in
Width
3.6875 in
Depth
5.344 in
Height
6.81 in
Overall Height
6.81 in
Hub Size - Maximum
1/2 in
Overall Width
3.68 in
Overall Depth
5.34 in

Details

Item
Control Station
Number of Gangs
2
Contact Form
1NO/1NC
Legend
Start/Stop
Type of Operator
Push Button
Number of Pilot Lights
0
Number of Operators
2
Series
FXCS
Hub Style
Feed-Thru
NEMA Rating
7, 9
Contact Rating
10A @ 600V AC, 2.5A @ 250V DC
Standards
CSA LR11714, UL E12379, UL E53360
Action
Momentary/Momentary
Safety Rating
Class 1, Division 1, Groups C, D
Mounting
Surface
Operator Color
Green, Red
Enclosure Material
Aluminum
NEMA Contact Rating Designation
A600/Q300
Number of Speeds
0
IP Rating
Not Rated
Enclosure Color
Gray
Product Type
Control Station
Mounting Style
Surface
NEMA Enclosure Rating
7, 9
Hazardous Location Specification
Class I, Div 1, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
AC Contact Rating
10 A @ 600 V
Mounting Orientation
Vertical
DC Contact Rating
2.5 A @ 250 V
Operator Configuration
(2) Push Buttons

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Legend Start/Stop, Type of Operator Push Button, Action Momentary/Momentary, Operator Color Green, Red, Contact Form 1NO/1NC, NEMA Rating 7, 9, Contact Rating 10A @ 600V AC, 2.5A @ 250V DC, NEMA Contact Rating Designation A600/Q300, IP Rating Not Rated, Mounting Surface, Height 6.81 in, Width 3.6875 in, Depth 5.344 in, Enclosure Material Aluminum, Enclosure Color Gray, Standards CSA LR11714, UL E12379, UL E53360
