  11. GFCI, 120VAC, 20A, 7 NEMA Rating

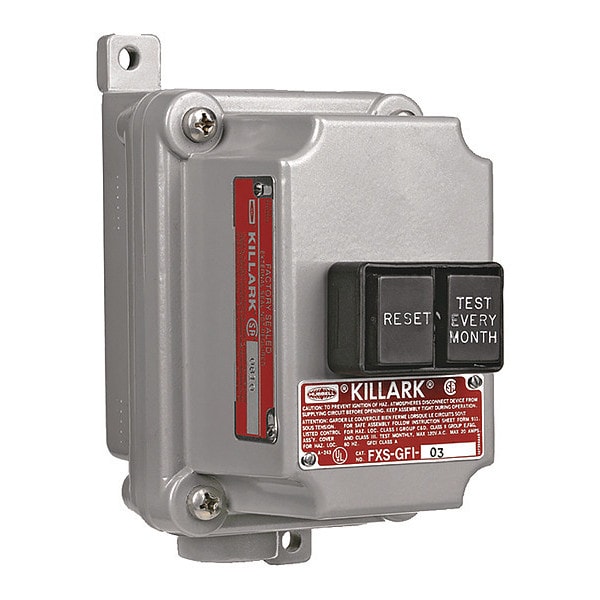

Hubbell Killark GFCI, 120VAC, 20A, 7 NEMA Rating FXS-GFI-1020 - main

GFCI, 120VAC, 20A, 7 NEMA Rating

  • Mfr # FXS-GFI-1020

  • Zoro # G1459932

product price: $1,113.99
/ea
Free Shipping & Returns

Key Features

NEMA Rating
7
Cover Type
Screw-On Cover
Current Rating
20 A
Housing Color
Gray
Housing Material
Copper-Free Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FXS-GFI-1020
Zoro #
G1459932
UPC #
783936198361
Country of Origin
United States

Dimensions

Hub Size
3/4 in
Overall Height
6.813 in
Overall Depth
5.125 in
Hub Diameter
0.5 in
Overall Width
3.688 in
Width
3.688 in
Depth
39569
Each - Width
3.688 in

Details

Item
GFCI
NEMA Rating
7
Cover Type
Screw-On Cover
Current Rating
20 A
Housing Color
Gray
Housing Material
Copper-Free Aluminum
NEMA Enclosure Rating
3
Material
Copper-Free Aluminum
Number of Poles
2
Number of Wires
3
Standards
CSA Certified, UL Listed
Feed-Thru Hub (In.)
3/4 in
Hz
60
Screws
Stainless Steel
Finish
Powder Coated
Voltage
120V AC
Amps
20 A
Mounting Box
1 Gang, Copperfree Aluminum
Hub Style
Feed-Thru
For Location
Indoor, Outdoor
Voltage Rating
120V AC
For Environment
Hazardous Location
Hub Type
Dead End
Housing Material Finish
Powder Coated
Frequency Rating
50/60 Hz
Series
FXS-GFI
UL File Number
E53360, E10501
Application
FXS ground fault interrupters are designed to interrupt a circuit when a ground fault is detected on equipment which may be handled by personnel in hazardous locations.
Actuator
Gound Fault Interupter
CSA File Number
LR11712
Color
Gray
Amperage Rating
20 A
Ambient Temp. Range
UL: -25 to 40°C, CSA: -50 to 40°C, IEC: -20 to 40°C
Type
Aluminum Factory Sealed Ground Fault Interrupter
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Back Box Type
FXB
Action
Push buttons
Special Features
Killark SEAL-X Series Factory Sealed Control Stations provide Ground fault interrupting protection solutions in hazardous location areas. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.

Description

GFCI, Cover Type Screw-On Cover, Current Rating 20 A, Housing Material Copper-Free Aluminum, Hub Diameter 0.5 in, Hub Type Dead End, NEMA Enclosure Rating 3, Number of Poles 2, Number of Wires 3, Voltage Rating 120V AC, For Environment Hazardous Location, For Location Indoor, Outdoor, Housing Color Gray, Housing Material Finish Powder Coated, Mounting Location Straight or Angled Back Box, Overall Depth 5.125 in, Overall Height 6.813 in, Overall Width 3.688 in, Standards CSA Certified, UL Listed
