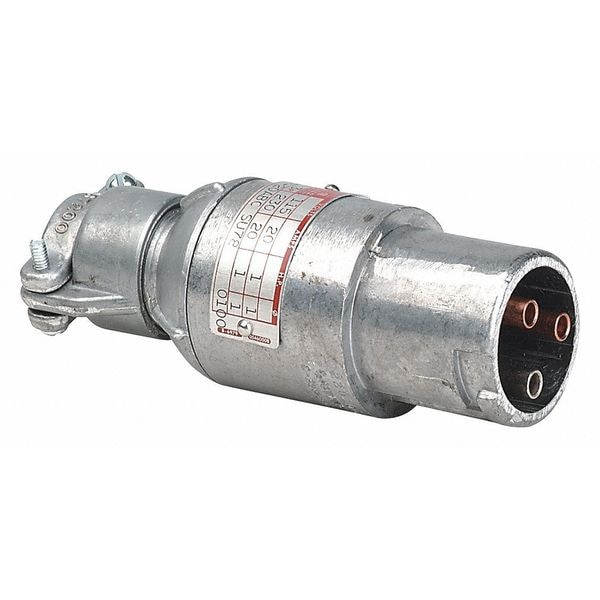

Hubbell Killark Kp-20Abc Plug, Explosion Proof KP-20ABC - main

Kp-20Abc Plug, Explosion Proof

  • Mfr # KP-20ABC

  • Zoro # G3159777

product price: $482.99
/ea
Free Shipping & Returns

Key Features

Voltage
120/240V AC
NEMA Rating
7
Amps
20 A
Standards
CSA Certified LR14667, UL E23572
HP
1 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KP-20ABC
Zoro #
G3159777
UPC #
-
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.625 in
Maximum Wire Size
10 AWG
Overall Length
6.375 in
For Minimum Cable Diameter
0.25 in
Outside Diameter
1.875 in
Minimum Wire Size
14 AWG
Wire Size
#14 AWG to #10 AWG
Length
7 in
Height
3.13 in
Size
7 in x 3.13 in x 3.13 in
Dimensions
7 in x 3.13 in x 3.13 in
Width
3.130 in
Each - Width
3.130 in

Details

Item
Pin and Sleeve Plug
Voltage
120/240V AC
NEMA Rating
7
Amps
20 A
Standards
CSA Certified LR14667, UL E23572
HP
1 hp
Number of Wires
3
Number of Poles
2
Material
Copper-Free Aluminum
Screws
Stainless Steel
Hz
60
Finish
Unfinished
Grounding
Grounded
Phase
Single
Features
KP Series Plugs are Suitable: in Hazardous Locations Due to the Presence of Flammable Vapors or Gases
Current Rating
20 A
Voltage Rating
115/230V AC
Reverse Service
No
Housing Color
Gray
For Environment
Hazardous Location
IP Rating
Not Rated
Shrouded
Yes
Power Indicating Light
No
Horsepower Rating
1 hp
Switch Rated
No
NEMA Enclosure Rating
3, 4, 4X
Connection Orientation
Straight
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D
Housing Material Finish
Unfinished
Grounding Style
Style 2
Housing Material
Metallic
Series
KP
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB,IIA
Type
Pin & Sleeve
Color
Gray
Amperage Rating
20 A
Special Features
Copper free aluminum. Delayed action contacts. Plugs with a wide range of grommet openings. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage.
Application
KP Series plugs are suitable: in hazardous locations due to the presence of flammable vapors or gases;where a heavy duty plug and receptacle is necessary;where a connection is required for portable or movable equipment such as tools, motors, hand lights
Operating Cycles
10,000 operations
Receptacle Type
Delayed Action

Description

Pin and Sleeve Plug, Current Rating 20 A, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Horsepower Rating 1 hp, Housing Color Gray, IP Rating Not Rated, Number of Poles 2, Number of Wires 3, Phase Single, Voltage Rating 115/230V AC, Cap Type Not Applicable, Connection Orientation Straight, For Maximum Cable Diameter 0.625 in, For Minimum Cable Diameter 0.25 in, Grounding Grounded, Grounding Style Style 2, Housing Material Copper-Free Aluminum, Maximum Wire Size 10 AWG
