  6. Manual Motor Switch, 20 A, 2 P, 1 Phase, Handle, FXSX Series, NEMA 3

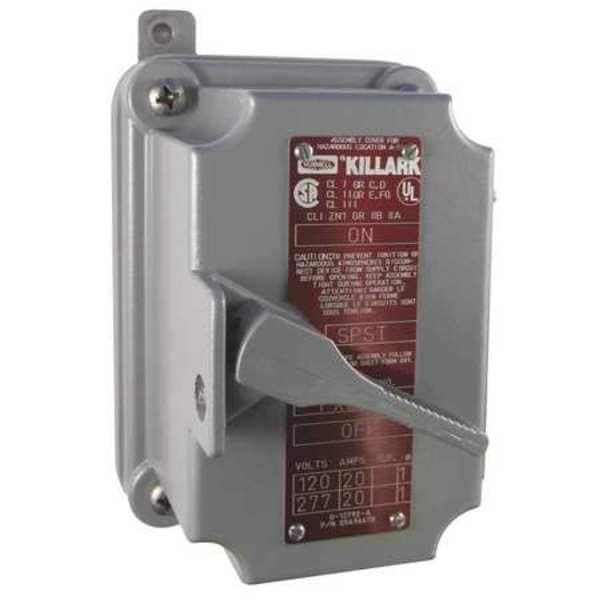

Hubbell Killark Manual Motor Switch, 20 A, 2 P, 1 Phase, Handle, FXSX Series, NEMA 3 FXSX12 - main

Manual Motor Switch, 20 A, 2 P, 1 Phase, Handle, FXSX Series, NEMA 3

  • Mfr # FXSX12

  • Zoro # G3601412

product price:  $592.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
1
Current AC
20 A
Includes Pilot Light
Yes
Number of Poles
2
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FXSX12
Zoro #
G3601412
UPC #
783936198019
Country of Origin
United States

Dimensions

Height
6.8125 in
Width
3.6875 in
Depth
5.3438 in
Hub Diameter
0.5 in
Mounting Hole Distance - Width
2.25 in
Overall Width
5.34 in
Mounting Hole Distance - Height
6.19 in
Overall Height
6.81 in
Overall Depth
3.69 in
Length
3.688 in
Dimensions
3.688 in x 5.344 in x 6.813 in

Details

Item
Manual Motor Switch
Number of Gangs
1
Current AC
20 A
Includes Pilot Light
Yes
Number of Poles
2
Phase
1
Operator
Handle
Starter Style
NEMA
Terminal Connection Type
Wire Leads
Maximum Voltage Rating
600V AC
Series
FXSX
Mounting Style
Surface
NEMA Enclosure Rating
NEMA 3
Standards
CSA LR11714, UL Listed E53360/E12379
HP @ 1 Phase - 230V
2 hp
HP @ 3 Phase - 460-575V
10 hp
HP @ 3 Phase - 200V
7 1/2 hp
HP @ 3 Phase - 230V
7 1/2 hp
No. of Thermal Units Required
None
Description/Special Features
(2) 1/2 in Hubs on Opposing Ends
Type
Aluminum Manual Motor Starting Switch Without Overload Protection
Number of Required Thermals
1
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Horsepower @ Three Phase - 600V AC
3 hp
Contact Material
Aluminum
Horsepower @ Single Phase - 240V AC
2 hp
Horsepower @ Single Phase - 120V AC
2 hp
Hub Type
Dead End
Horsepower @ 230V DC
2 hp
Horsepower @ Three Phase - 480V AC
3 hp
Frequency Rating
60 Hz
Special features
FXSX Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Pro
Application
Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used. FXSX Series (without overload protection) is ideally suited for across-the-line applications where a positive disconnect means is requ

Description

Motor Switch, Number of Gangs 1, Current AC 20 A, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Three Phase - 480V AC 3 hp, Horsepower @ Three Phase - 600V AC 3 hp, Includes Pilot Light Yes, Number of Poles 2, Number of Required Thermals 1, Operator Handle, IP Rating Not Applicable, Phase Single, Starter Style NEMA
