  11. Pin and Sleeve Plug, 600VAC/250VDC, 20A

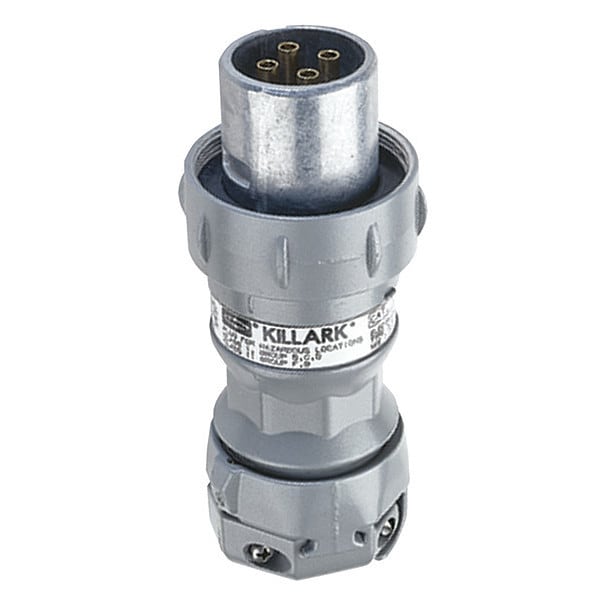

Hubbell Killark Pin and Sleeve Plug, 600VAC/250VDC, 20A VP3275 - main

Pin and Sleeve Plug, 600VAC/250VDC, 20A

  • Mfr # VP3275

  • Zoro # G1459941

product price: $292.99
/ea
Free Shipping & Returns

Key Features

Voltage
600V AC/250V DC
NEMA Rating
3, 7, 9
Amps
20 A
Standards
CSA Certified LR111846, UL E10757
Number of Wires
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VP3275
Zoro #
G1459941
UPC #
783936834009
Country of Origin
United States

Dimensions

Hub Size
1/2 in
Overall Length
6.688 in
Outside Diameter
3 in
Face Diameter
1.875 in
Minimum Wire Size
10 AWG
Maximum Wire Size
6 AWG
Width
3 in
Length
6.68 in
Height
3 in
Dimensions
6.68 in x 3 in x 3 in

Details

Item
Pin and Sleeve Plug
Voltage
600V AC/250V DC
NEMA Rating
3, 7, 9
Amps
20 A
Standards
CSA Certified LR111846, UL E10757
Number of Wires
2
Number of Poles
2
Material
Copper-Free Aluminum
Finish
Powder Coated
Mounting Box
Copperfree Aluminum
Hz
50/60
Screws
Stainless Steel
Current Rating
30 A
Market
Industrial
For Environment
Cold, Corrosive, Hazardous Location, Marine, Wet
Grounding Style
Style 1
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D
Housing Material
Metallic
Grounding
Grounded
Wire Connection Type
Screw Terminals
For Location
Indoor, Outdoor
Shrouded
Yes
IP Rating
Not Rated
NEMA Enclosure Rating
4X
Housing Material Finish
Baked Powder Epoxy/Polyester Coated
Phase
Single
Voltage Rating
250V DC, 600V AC
Reverse Service
No
Switch Rated
No
Features
Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable
Connection Orientation
Straight
Housing Color
Gray
Power Indicating Light
No
Style
Style I
Grommet Range
0.55-1.20
Frequency Rating
50-400 Hz
Type
Pin & Sleeve
Application
Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Amperage Rating
30 A
Finish Type
Baked Powder Epoxy/Polyester Finish
Series
VersaMate

Description

Pin and Sleeve Plug, Current Rating 30 A, Hazardous Location Specification Class I, Div 1 and 2, Group A, B, C, D, Horsepower Rating Not Applicable, Housing Color Gray, IP Rating Not Rated, Number of Poles 2, Number of Wires 2, Phase Single, Voltage Rating 250V DC, 600V AC, Wire Connection Type Screw Terminals, Cap Type Not Applicable, Connection Orientation Straight, Face Diameter 1.875 in, Grounding Grounded, Grounding Style Style 1, Housing Material Copper-Free Aluminum
