  11. Pin and Sleeve Receptacle, 120VAC, 20A

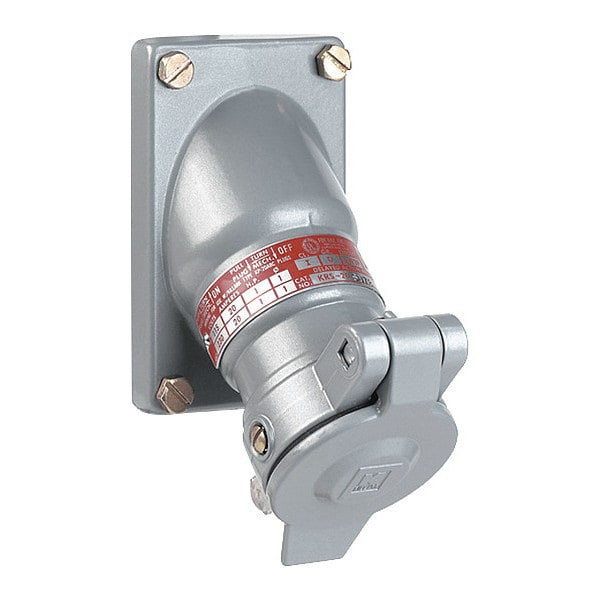

Hubbell Killark Pin and Sleeve Receptacle, 120VAC, 20A KRS-20 - main

Pin and Sleeve Receptacle, 120VAC, 20A

  • Mfr # KRS-20

  • Zoro # G0749907

product price: $726.99
/ea
Additional $55.00 delivery surcharge applies per item.
See details

Key Features

Voltage
120V AC
NEMA Rating
3, 7, 9
Number of Wires
3
Number of Poles
2
Amps
20 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KRS-20
Zoro #
G0749907
UPC #
783936390062
Country of Origin
United States

Dimensions

Hub Size
1/2 in
Hub Diameter
0.75 in

Details

Item
Pin and Sleeve Receptacle
Voltage
120V AC
NEMA Rating
3, 7, 9
Number of Wires
3
Number of Poles
2
Amps
20 A
Material
Copper-Free Aluminum
Standards
CSA Certified LR14667, UL E23572
Hz
60
Finish
Powder Coated
Screws
Stainless Steel
Mounting Box
Receptacle Cover
Flange Type
Flanged
Housing Material Finish
Powder Coated
Hub Type
Feed Through
Reverse Service
No
Power Indicating Light
No
Phase
Single
Grounding Style
Style 2
Wire Connection Type
Wire Leads
Features
Delayed Action Contacts, Wire Leads for Termination
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D
Grounding
Grounded
Housing Material
Copper-Free Aluminum
Number of Gangs
1
Housing Color
Gray
Connection Orientation
Straight
Cap Type
Flip-Up Cap
Voltage Rating
115/230V AC
Shrouded
Yes
NEMA Enclosure Rating
3, 4, 4X, 7BCD, 9FG
Includes Mounting Hardware
Yes
Current Rating
20 A
IP Rating
Not Rated

Description

Pin and Sleeve Receptacle, Current Rating 20 A, Flange Type Flanged, Grounding Style Style 2, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, IP Rating Not Rated, NEMA Enclosure Rating 3, 4, 4X, 7BCD, 9FG, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 115/230V AC, Cap Type Flip-Up Cap, Connection Orientation Straight, Grounding Grounded, Housing Color Gray, Housing Material Copper-Free Aluminum, Power Indicating Light No
