  11. Pin & Slve Plug, 200A, 3P, 3W, 600VAC/250VDC

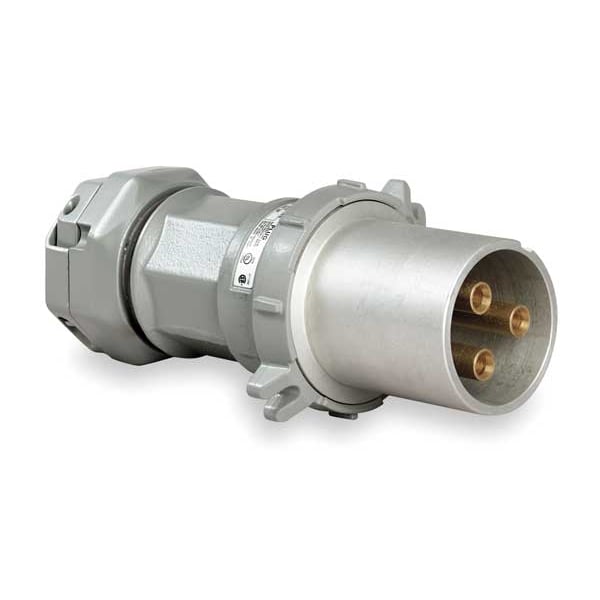

Hubbell Killark Pin & Slve Plug, 200A, 3P, 3W, 600VAC/250VDC VP203512-S39 - main

Pin & Slve Plug, 200A, 3P, 3W, 600VAC/250VDC

  • Mfr # VP203512-S39

  • Zoro # G5990747

product price: $1,284.99
/ea
Free Shipping & Returns

Key Features

Voltage
600V AC/250V DC
Amps - Plugs and Receptacles
200 A
Amps
200 A
Voltage - Plugs and Receptacles
600V AC / 250V DC
Standards
CSA Certified LR111846, UL E10757
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VP203512-S39
Zoro #
G5990747
UPC #
783936832913
Country of Origin
United States

Dimensions

Overall Length
12.625 in
Outside Diameter
6.375 in
Face Diameter
3.719 in
Maximum Wire Size
1 AWG
Minimum Wire Size
1 AWG
Width
6.38 in
Height
6.38 in
Dimensions
12.62 in x 6.38 in x 6.38 in
Length
12.62 in

Details

Item
Pin and Sleeve Plug
Voltage
600V AC/250V DC
Amps - Plugs and Receptacles
200 A
Amps
200 A
Voltage - Plugs and Receptacles
600V AC / 250V DC
Standards
CSA Certified LR111846, UL E10757
Number of Wires
3
Number of Poles
3
Switch Rated
No
Grounding Style
Style 1
Material
Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
Phase
Three
Features
Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable
Shrouded
Yes
For Environment
Cold, Corrosive, Hazardous Location, Marine, Wet
For Location
Indoor, Outdoor
Voltage Rating
250V DC, 600V AC
Housing Color
Gray
Reverse Service
Yes
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D
Wire Connection Type
Screw Terminals
NEMA Enclosure Rating
4X
Housing Material Finish
Baked Powder Epoxy/Polyester Coated
Current Rating
200 A
IP Rating
Not Rated
Connection Orientation
Straight
Power Indicating Light
No
Grounding
Grounded
Housing Material
Metallic
Market
Industrial
Finish
Baked Powder Epoxy/Polyester Finish
Type
Pin & Sleeve
Hz
50-400 Hz
Finish Type
Baked Powder Epoxy/Polyester Finish
Application
Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Grommet Range
1.0-2.5
Style
Style I
Frequency Rating
50-400 Hz
Amperage Rating
200 A
Series
VersaMate

Description

Pin and Sleeve Plug, Current Rating 200 A, Hazardous Location Specification Class I, Div 1 and 2, Group A, B, C, D, Horsepower Rating Not Applicable, Housing Color Gray, IP Rating Not Rated, Number of Poles 3, Number of Wires 3, Phase Three, Voltage Rating 250V DC, 600V AC, Wire Connection Type Screw Terminals, Cap Type Not Applicable, Connection Orientation Straight, Face Diameter 3.719 in, Grounding Grounded, Grounding Style Style 1, Housing Material Copper-Free Aluminum
