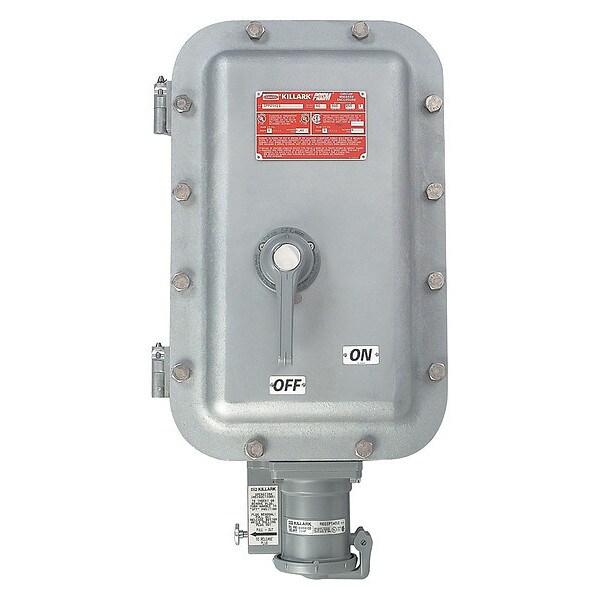

Hubbell Killark Receptacle with Disconnect Switch, 30A VBQ1034CH100 - main

Receptacle with Disconnect Switch, 30A

  • Mfr # VBQ1034CH100

  • Zoro # G7674952

product price: $9,217.99
/ea
Free Shipping & Returns

Key Features

Voltage
600V AC/250V DC
NEMA Rating
3, 4, 4X
Number of Wires
4
Number of Poles
3
Amps
30 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VBQ1034CH100
Zoro #
G7674952
UPC #
783936828763
Country of Origin
United States

Dimensions

Hub Size
1 1/2 in
Maximum Wire Size
1/0 AWG
Hub Diameter
1.5 in
Overall Depth
8.88 in

Details

Item
Receptacle with Disconnect Switch
Voltage
600V AC/250V DC
NEMA Rating
3, 4, 4X
Number of Wires
4
Number of Poles
3
Amps
30 A
Material
Copper-Free Aluminum
Mounting Box
Copperfree Aluminum
Standards
CSA Certified, UL Listed
Screws
Stainless Steel
Hz
50/60
Hub Style
Dead-end
Finish
Powder Coated
Circuit Breaker
No
Viewing Window
No
NEMA Enclosure Rating
3, 4, 4X, 7BCD, 9FG
Phase
Three
Includes Mounting Hardware
Yes
Housing Material Finish
Epoxy Coated; Polyester Finish
Resistance Properties
Corrosion Resistant
Reverse Service
No
Voltage Rating
600V AC/250V DC
Electrical Connection Type
Pin and Sleeve
Enclosure Lock Type
Padlockable
Current Rating
100 A
Housing Material
Copper-Free Aluminum
Hazardous Location Specification
Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Locking Handle
Yes
Hub Type
Dead End
Fuse Protection
Non-Fused
Disconnect Switch
Yes
Grounding
Grounded
Hazardous Rating(s)
Class I, Division 2, Groups B, C, D;Class I, Zone 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
Series
VBQ
Receptacle Type
Mechanically Interlocked
Type
Pin & Sleeve
Amperage Rating
100 A
Hub Pattern
Dead-End

Description

Receptacle with Disconnect Switch, Circuit Breaker Amp Rating Not Applicable, Circuit Breaker Type Not Applicable, Current Rating 100 A, Fuse Protection Non-Fused, Fuse Type Not Applicable, Hazardous Location Specification Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Locking Handle Yes, NEMA Enclosure Rating 3, 4, 4X, 7BCD, 9FG, Number of Poles 3, Number of Wires 4, Voltage Rating 600V AC/250V DC, Disconnect Switch Yes, Enclosure Lock Type Padlockable, Grounding Grounded
