  9. Ethernet Cable, Cat 6A, Gray, 5 ft.

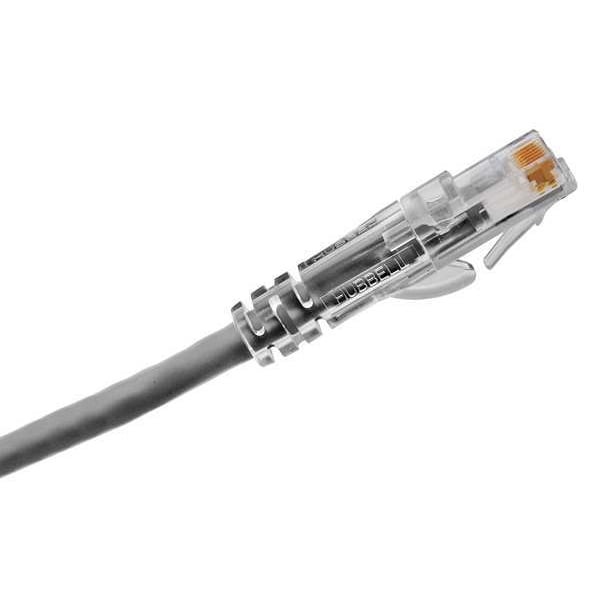

Hubbell Premise Wiring Ethernet Cable, Cat 6A, Gray, 5 ft. HC6AGY05 - main

Ethernet Cable, Cat 6A, Gray, 5 ft.

  • Mfr # HC6AGY05

  • Zoro # G6853761

product price: $20.45
/ea

Key Features

Jacket Material
Flame Redardant PVC
Color
Gray
Wire Gauge
24 AWG
Shielding
None
Standards
ANSI/TIA/EIA-568-C.2, CM Rated, ISO 11801/60603-7-41, RoHS Compliant, TIA-568-C.2, UL 1863
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HC6AGY05
Zoro #
G6853761
UPC #
662620229898
Country of Origin
United States

Dimensions

Length - Patch Cord
5.0 ft
Length
5 ft.
Conductor Size - Data Cable
26 AWG
Overall Length
5 ft
Cable Diameter
0.2 in
Outside Diameter
0.218
Wire Size
#24 AWG
Cable Length
5 ft

Details

Jacket Material
Flame Redardant PVC
Color
Gray
Wire Gauge
24 AWG
Shielding
None
Standards
ANSI/TIA/EIA-568-C.2, CM Rated, ISO 11801/60603-7-41, RoHS Compliant, TIA-568-C.2, UL 1863
Category Type
6A
Connector Type
RJ45 - 8P8C
Category - Data Cable
6A
Boot Type
PVC
Jacket Material - Wire and Cable
PVC
Plenum Rated
No
NEC Article and Type
800 CM
Transmission Speed
10 GBps
Boot Type - Data cable
Clear Boot, Clear Boot
Item - Data Cable
Voice and Data Patch Cord
Cable Shape
Round
Item
NEXTSPEED Ascent Category 6A Patch Cords
Connector Type - Patch Cord
RJ45, RJ45
Shielded
Unshielded
Temp. Range
-40 Degrees to 167 Degrees F
Fire Rating - Data Cable
Commercial
Jacket Color
Gray
Features
Flame Retardant, Stranded
For Use With
Network Applications
Fire Rating
Commercial
Maximum Operating Temperature
167 Degrees F
End 1 Boot Type
Clear Boot
End 2 Boot Type
Clear Boot
Conductor Gauge
24 AWG
Maximum Voltage Rating
300 kV AC
Performance Category
6A
Resistance Properties
Flame/Fire Resistant
End 2 Connection Type
RJ45
End 1 Connection Type
RJ45
Insulation Material
Polyvinyl Chloride (PVC)
Minimum Operating Temperature
-40 Degrees F
Application
Category 6A
Insulating Material
Flame Redardant PVC
Temp. Rating
Per TIA
Conductor Type
Copper
Brand
Hubbell Premise Wiring
Voltage Rating
300V AC kV
Attenuation
.1dB
Number Of Conductors
8-Conductor
Plug Type
RJ45
Cable Characteristic
Patch Cable
Product Material
Polyvinyl Chloride (PVC), Copper
Cable Type
Category 6a
Connector Gender on Second End
Male
Device Supported
Network Device
Number of Conductors
8
Connection B
RJ-45 Network - Male
Connection A
RJ-45 Network - Male
Connector Gender on First End
Male

Description

Voice and Data Patch Cord, Cable Shape Round, Conductor Gauge 24 AWG, Jacket Color Gray, Overall Length 5 ft, Performance Category 6A, Shielded Unshielded, Fire Rating Commercial, Jacket Material PVC, Standards ANSI/TIA/EIA-568-C.2, CM Rated, ISO 11801/60603-7-41, RoHS Compliant, TIA-568-C.2, UL 1863, Transmission Speed 10 GBps, NEC Article and Type 800 CM, End 1 Boot Type Clear Boot, End 2 Boot Type Clear Boot, End 2 Connection Type RJ45, End 1 Connection Type RJ45, Cable Diameter 0.2 in
