  9. Wiring Block, 110/100-pair w/4pair block
Shop All Voice & Data Wiring Blocks
Hubbell Premise Wiring

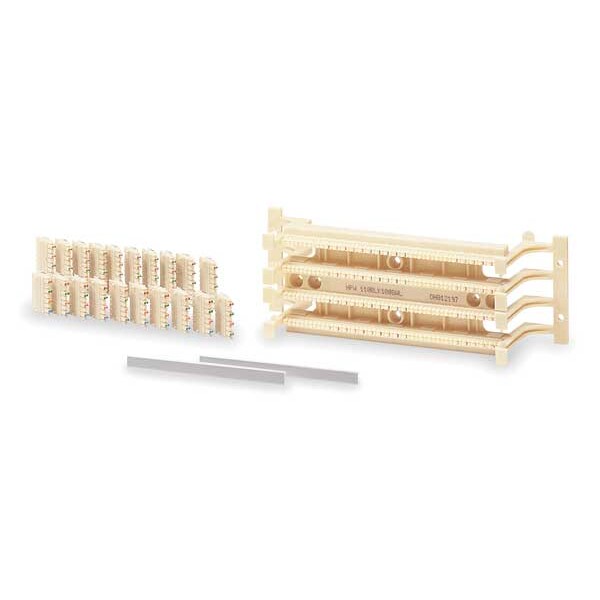

Wiring Block, 110/100-pair w/4pair block

product price: $31.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • With Legs Yes
  • Rows 4
  • Pins per Row 50
  • Category Type 5E
  • Number of Pairs 4
See all product information

Product Information

Dimensions

Dimension - Stud Size inch #10
Dimension - L Length Overall mm 30 mm
Dimension - Strip Length inch 45062
Length 10.5 in
Dimension - Hole Size inch 0.20 in
Dimension - Length Overall inch 1.18 in
Dimension - N inch 0.27 in
Dimension - Hole Size mm 5 mm
Dimension - B Length fraction 2/9 in
Dimension - B Length inch 0.22 in
Overall Depth 10 1/2 in

Details

Item Wiring Block,Slots 100
With Legs Yes
Rows 4
Pins per Row 50
Category Type 5E
Number of Pairs 4
Clip Pair Type 4/5
Product Type 110
Operating Temperature 0 Degrees C to 75 Degree C
Insulation Y
Industry Standard(s) UL Listed
Material - Mounting Hardware Mounting Screws
Physical Attribute - Tongue Type Fork
Series Cat 5E
Cable Specification Per TIA-568C.2 Spec
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Number Of Rows And Columns 4
Material Composite
Compatibility Within TIA-568C.2
Plating Type Tin
Pairs Or Conductor 100-Pair W/4-Pair Connecting Blocks
Connector Type Terminal
Item Type SPEEDGAIN 110 Connecting Block System
Number Of Clips Per Row 6
Insulation Type Heat Shrink
Physical Attribute - Number of Holes 1
OEM Brand Name Hubbell Premise Wiring
Number of Pins per Row 50
Standards UL Listed
Number of Rows 4
Compatible Cable Performance Category 5e
Attached Legs Yes
Number of Clips 24

Description

Wiring Block,Slots 100, Product Type 110, Compatible Cable Performance Category 5e, Attached Legs Yes, Clip Pair Type 4/5, Includes Not Applicable, Number of Clips 24, Number of Pairs 4, Number of Pins per Row 50, Number of Rows 4, Resistance Properties Not Applicable, Overall Depth 10 1/2 in, Standards UL Listed
