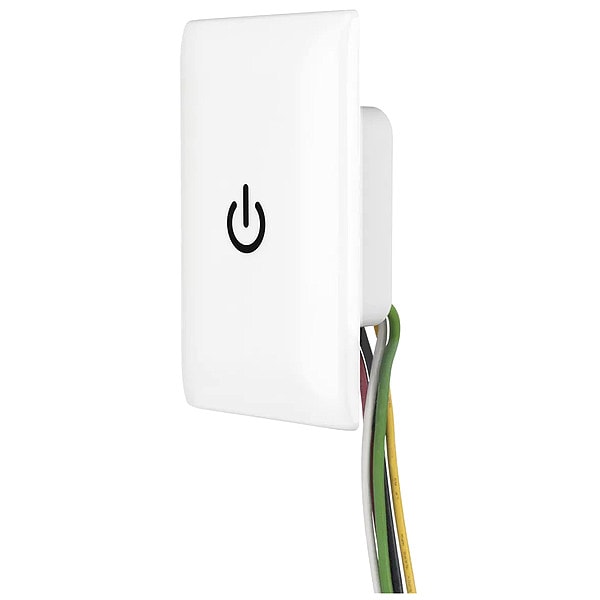

Hubbell ScrubShield Switch WSS1277PW - main

ScrubShield Switch

  • Mfr # WSS1277PW

  • Zoro # G208091531

product price: $84.99
/ea
Free Shipping & Returns

Key Features

Switch Type
3-Way
Switch Style
Touch
Color
White
Switch Function
Maintained
Wiring Method
Back
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WSS1277PW
Zoro #
G208091531
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Overall Width
3.1 in
Overall Height
4.9 in
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Mount Hole Center-to-Center Height
3.3 in
Size
4 3/4 x 3 inches

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Touch
Color
White
Switch Function
Maintained
Wiring Method
Back
Maximum Operating Temperature
104 Degrees F
Style
Heavy Duty
Nightlight
No
Voltage Rating
120/277V AC
Wire Connection Type
Wire Leads
Current Rating
8 A
Resistance Properties
Antimicrobial, Chemical Resistant, Impact Resistant
Type
Tap
Standards
NEMA 3R, UL Listed
Number of Switches
1
Illuminated
No
Pilot Light
No
Minimum Operating Temperature
32 Degrees F
Features
(5) 6" Long Lead Wires, Includes ABS Plastic Cover Plate
Market
Commercial, Industrial
Operating Temperature
0-60 degree c
Action
Relay Contact
Number Of Poles
3
Wattage
960 W
Industry Standard(s)
Heavy Duty Switches and Controls
Actuator
Tap Switch
Amperage Rating
8A
Operating Cycles
30K
Application
Hospitals, Medical Areas, locations needing constant cleaning
Material
Plastic, Steel with Electronics
Contact Rating
8A
Contact Configuration
Relay
Series
General Purpose
Mounting Type
Standard Box Mount
Environmental Conditions
indoor

Description

The HUBBELL ScrubShield Switch is a wall switch suitable for installation in environments where regular cleaning is performed, including healthcare settings. It features a smooth ABS plastic cover plate molded with antimicrobial additives. The switch is suitable for commercial and industrial environments that demand regular disinfection.


Key Features of the HUBBELL ScrubShield Wall Switch:

  • Switch Type: 3-way tap switch with maintained relay contact configuration

  • Material: Plastic cover plate with steel components and electronics

  • Resistance Properties: Contains antimicrobial additives; chemical resistance; impact resistance

  • Electrical Ratings: 8A at 120/277V AC; maximum wattage of 960 W

  • Standards: NEMA 3R rated (suitable for wet conditions), UL Listed

  • Operating Temperature Range: 32°F to 104°F (0°C to 60°C)

  • Mounting Type: Standard box mount; includes ABS plastic cover plate and five 6" long lead wires

  • Wire Size Compatibility: Accepts wire sizes from 16 AWG to 14 AWG using back wiring method
