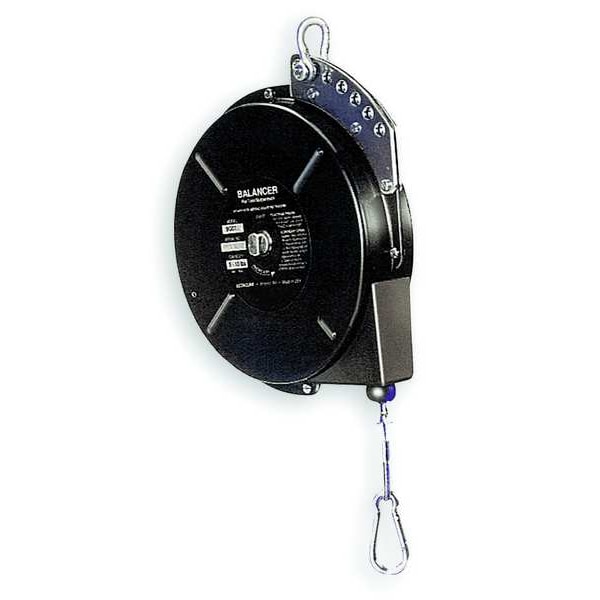

Hubbell Tool Balancer, For Tool 16-23 Lb, Lock BG-20-L - main

Tool Balancer, For Tool 16-23 Lb, Lock

  • Mfr # BG-20-L

  • Zoro # G2774012

product price: $479.99
/ea
Free Shipping & Returns

Key Features

Series
BG
For Tool Weighing
16.00 to 23.00 lb
Cable Length
8 ft
Ratchet Lock
Yes
Reel Weight
8 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BG-20-L
Zoro #
G2774012
UPC #
-
Country of Origin
United States

Dimensions

Cable Length
8 ft
Overall Height
13 7/8 in
Overall Width
8 3/4 in
Overall Depth
3 3/8 in
Reel Height When Retracted
13 7/8 in

Details

Item
Tool Balancer
Series
BG
For Tool Weighing
16.00 to 23.00 lb
Ratchet Lock
Yes
Reel Weight
8 lb
Tension Adjustment
Wrench Spring Tension Adjustment
Includes
Adjustable Cable Stop, Safety Tool Clip
Housing Material
Steel
Lock Mechanism
Ratchet Locking
Features
Extra Holes for Safety Chain Attachment, Reinforced Hanging Bracket with Forged Clevis for Ceiling Mounting, Spring Is Permanently Lubricated
Cable Material
Galvanized Steel
Spring Fail Mechanism
No
Minimum Tool Weight
16 lb
Shock Absorption
Not Included
Maximum Tool Weight
23 lb
Tool Attachment Type
Spring Clip
Reel Mount Type
Suspension Shackle
Drum Type
Standard
Product Type
Tool Balancer
Tool Balancer Series
ToolAssistPro Ergo 2, BG
Rotation Type
Fixed

Description

The HUBBELL Tool Balancer is rated for use with tools weighing between 16 and 23 lb; provides suspension for tool positioning in workplace environments. Constructed with a steel housing and galvanized steel cable, this tool balancer features a ratchet locking mechanism that allows the user to secure the position of suspended tools as needed. The unit mounts via a reinforced hanging bracket with forged clevis for ceiling installation.


Key Features of the HUBBELL Tool Balancer:

  • Cable Material: Galvanized steel cable supports the specified weight range of attached tools.

  • Lock Mechanism: Ratchet locking system allows adjustment of tool position within operational parameters.

  • Mounting: Reinforced hanging bracket with forged clevis is compatible with ceiling installation; additional holes are available for optional chain attachment.

  • Tension Adjustment: Wrench spring tension adjustment accommodates different tool weights within the rated range (16–23 lb).

  • Includes: Adjustable cable stop and tool clip included for attaching compatible equipment as specified by manufacturer guidelines.

  • Cable Length: 8 ft

  • Drum Type & Reel Mount: Standard drum type with suspension shackle mount
