Shop HUBBELL

USB Receptacles SNAP8300UACGY

  • Mfr # SNAP8300UACGY

  • Zoro # G706905330

product price:  $63.15
/ea

Key Features

Number of Poles
2
Wiring Method
Back
Standards
cULus Listed to UL498, UL1310
Number of Wires
3
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SNAP8300UACGY
Zoro #
G706905330
UPC #
-
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.81 in
Maximum Wire Size
10 AWG
Overall Depth
1.54 in
Minimum Wire Size
14 AWG

Details

Item
Snapconnect receptacle
Number of Poles
2
Wiring Method
Back
Standards
cULus Listed to UL498, UL1310
Number of Wires
3
Phase
Single
Includes
Mounting Screw, Mounting Strap
Maximum Operating Temperature
167 Degrees F
Voltage Rating
125V AC
GFCI
No
Housing Color
Gray
Market
Residential
Grade
Hospital Grade
Number of Outlets
2
USB Charging Capacity
3 A @ 9V
Number of USB Ports
2
USB Connection Type
A, C
Minimum Operating Temperature
-40 Degrees F
Contact Material
Copper
USB Standard
1.2
Grounding
Grounded
NEMA Receptacle Configuration
5-20R
Housing Material
Thermoplastic
Mount Type
Flush
Electrical Connection Type
Straight Blade
Resistance Properties
Tamper Resistant
Receptacle Type
Duplex
Current Rating
20 A
Power Indicating Light
Yes
Wire Connection Type
Snap-In Module
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-2

Description

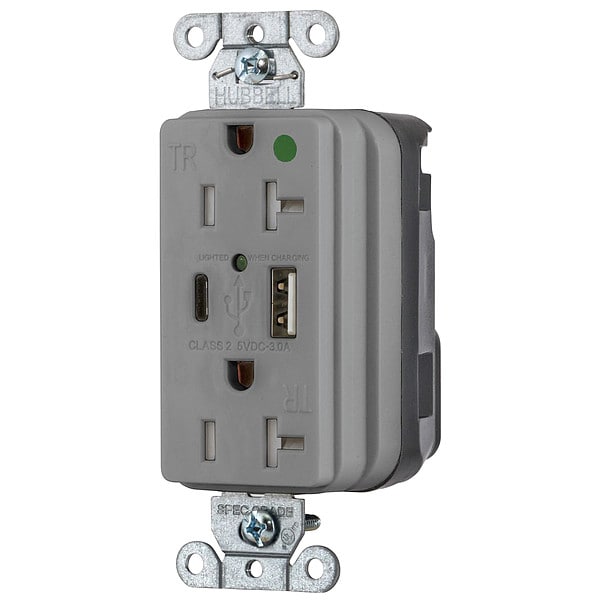

The HUBBELL SNAP8300UACGY is a duplex straight blade receptacle with integrated USB charging ports, compatible with modular wiring using the SNAPConnect system. This hospital grade device features two power outlets and two fast-charge USB ports (one Type A and one Type C), enabling use of standard plugs and compatible electronic devices. The modular connector supports installation during rough-in, with a snap-in terminal connection after wall completion.


Key Features of the HUBBELL SNAP8300UACGY Snapconnect Receptacle:

  • Current Rating: 20 A

  • NEMA Configuration: 5-20R duplex receptacle with grounded design

  • USB Ports: Two fast charge ports (Type A & Type C) rated at 3A up to 9V; rated for up to 10,000 cycles

  • Contact Material: Copper contacts

  • Tamper Resistant: Built-in tamper resistance enhances user safety

  • Mounting: Flush mount type; includes mounting screw and strap hardware

  • Wire Size Compatibility: Accepts wire sizes from 14 AWG to 10 AWG via back-wired modular connections

  • Operating Temperature Range: -40°F to 167°F for varied installation environments

  • Standards Compliance: cULus Listed to UL498 and UL1310; Hospital Grade rating ensures suitability in demanding settings
