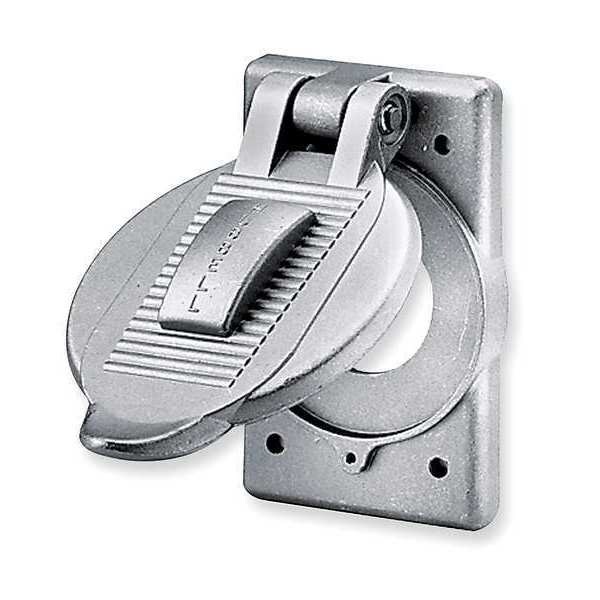

1 Gang -Gang Vertical Weatherproof Cover, , Cast Aluminum
Mfr # HBL7420
Zoro # G0686201
CAD Available
product price:Â $64.85
/eaKey Features
CAD Drawing
Number of Gangs
1
For Box Shape
Rectangle
Overall Length
4.56 in
Overall Width
2-13/16 in
Material
Cast Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBL7420
Zoro #
G0686201
UPC #
783585809434
Country of Origin
China
Dimensions
Overall Length
4.56 in
Overall Width
2-13/16 in
Overall Height
4-9/16 in
Overall Depth
2 7/8 in
Details
Item
Weatherproof Cover
Number of Gangs
1
For Box Shape
Rectangle
Material
Cast Aluminum
Lid Style
Self-Closing
Mounting Orientation
Vertical
Gasket Material
Neoprene
Standards
CM, UL Listed
Includes
Mounting Screws
For Use With
20A and 30A Single Locking Receptacles
Cover Material
Aluminum
Mounting Box
FS or FD Weatherproof Boxes
Color
Aluminum
Weight
0.45
Self Closing Lid
Includes Self Closing Lids
Includes Lid
With Lid
Compatible with Product Type
Receptacles, Switches
NEMA Enclosure Rating
No Enclosure
For Number of Gangs
1
CAD Available
Yes
Description
Weatherproof Cover, Mounting Box FS or FD Weatherproof Boxes, For Use With 20A and 30A Single Locking Receptacles, Mounting Orientation Vertical, Lid Style Self Closing, Number of Gangs 1, Gasket Material Neoprene, Cover Material Aluminum, Color Aluminum, Height 4 9/16 in, Width 2 27/32 in, Standards CM, UL Listed, Includes Mounting Screws
