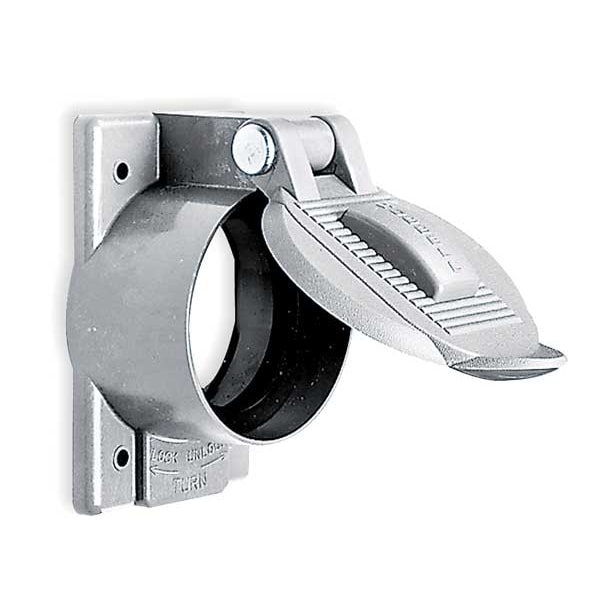

1 -Gang Vertical Weatherproof Cover, 2-27/32" W, 4-9/16" H
Mfr # HBL7774WO
Zoro # G1818056
CAD Available
product price:Â $68.72
/eaKey Features
CAD Drawing
Number of Gangs
1
For Box Shape
Rectangle
Overall Width
2-7/8 in
Lid Style
Self-Closing
Overall Height
4-9/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
HBL7774WO
Zoro #
G1818056
UPC #
783585809526
Country of Origin
United States
Dimensions
Overall Width
2-7/8 in
Overall Height
4-9/16 in
Details
Item
Weatherproof Cover
Number of Gangs
1
For Box Shape
Rectangle
Lid Style
Self-Closing
Mounting Orientation
Vertical
Cover Material
Thermoplastic
Includes
Mounting Screws
Mounting Box
FS or FD Weatherproof Boxes
Color
Gray
For Use With
Single 50A Straight Blade Receptacles and 50A Twist-Lock(R) Receptacles
Standards
CM, UL Listed
Weight
0.35
Self Closing Lid
Includes Self Closing Lids
Compatible with Product Type
Duplex Receptacles
NEMA Enclosure Rating
No Enclosure
For Number of Gangs
1
Includes Lid
With Lid
CAD Available
Yes
Description
Weatherproof Cover, Mounting Box FS or FD Weatherproof Boxes, For Use With Single 50A Straight Blade Receptacles and 50A Twist-Lock(R) Receptacles, Mounting Orientation Vertical, Lid Style Self Closing, Number of Gangs 1, Cover Material Thermoplastic, Color Gray, Height 4 9/16 in, Width 2 27/32 in, Standards CM, UL Listed, Includes Mounting Screws
