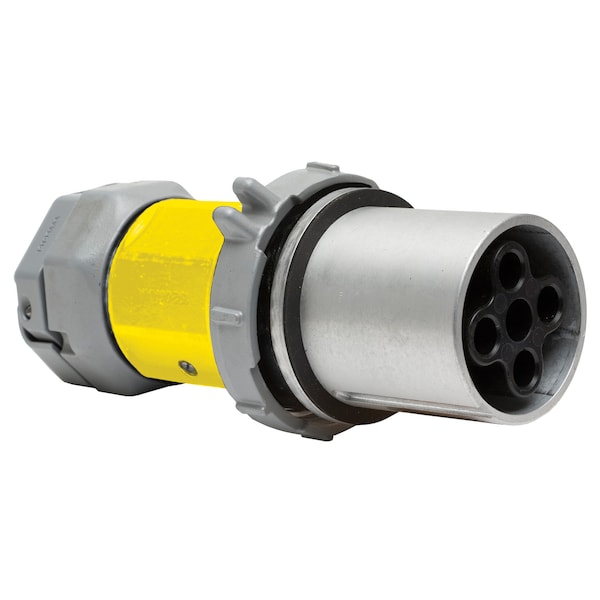

Hubbell Wiring Device-Kellems Ac Marine Connector M5200CS1R - main

Ac Marine Connector

  • Mfr # M5200CS1R

  • Zoro # G0799885

product price: $1,829.25
/ea
Free Shipping & Returns

Key Features

Item - Plugs and Receptacles
Watertight Plug
Body Material - Pin and Sleeve
Composite
Amps - Plugs and Receptacles
200 A
Type
Watertight Plug
Voltage - Plugs and Receptacles
250V DC/600V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M5200CS1R
Zoro #
G0799885
UPC #
-
Country of Origin
United States

Dimensions

Outside Diameter
11.13 in
Overall Length
6.7 in
For Maximum Cable Diameter
2.5 in
For Minimum Cable Diameter
1 in
Minimum Wire Size
1 AWG
Maximum Wire Size
250 kcmil
Display Size
Standard

Details

Item - Plugs and Receptacles
Watertight Plug
Item
Ac Marine Connector
Body Material - Pin and Sleeve
Composite
Amps - Plugs and Receptacles
200 A
Type
Watertight Plug
Voltage - Plugs and Receptacles
250V DC/600V AC
Material
Composite
Current Rating
200 A
Switch Rated
No
Grounding Style
Style 1
Number of Wires
5
Number of Poles
4
Features
All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Dust-Tight Seal, Watertight
Standards
CSA Certified to CSA Spec. C22.2 No. 159, CSA Certified Type 4X, UL 1010, UL 1682, UL 50, UL Listed
Application
Metallic with Nylon Shroud
Power Indicating Light
No
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant
Reverse Service
Yes
Housing Material
Composite
Connection Orientation
Straight
Number of Ground Connections
5
Voltage Rating
250V DC, 600V AC
Cap Type
Spring-Loaded Cap
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
Housing Color
Silver
Grounding
Grounded
Shrouded
Yes
Contact Material
Brass
IP Rating
IP68, IP69K
Compatible with Series
Insulgrip
UL 94 Flammability Rating
V-0
NEMA Enclosure Rating
4X
Maximum Operating Temperature
75 Degrees C
Series
UL 1686 Class 1 Insulgrip®
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Reversed Service,Corrosion Resistant
Material - Mounting Hardware
Cord Mounted
Conductor Range
#1 AWG to #250 MCM
Nema Rating
Non-NEMA
Amperage Rating
200 A
Industry Standard(s)
CSA Certified to CSA Spec. C22.2 No. 159 UL Listed and CSA Certified Type 4X UL Standard 1682,UL 50, and UL 1010
Current / Amperage Rating
200 A
Insulation
Insulated Body
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
Connectivity
Pressure Terminal Screws
Item Type
Standard
Voltage Rating Description
600V AC/250V DC
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Environmental Conditions
Watertight
Number Of Conductors
5-Wire Grounding

Description

Metallic where you want It, non-metallic where you need it. Different from traditional all-metallic devices, Hubbell Pin and Sleeve wiring devices are designed to provide metallic shrouding where you want it and a non-metallic housing where you need it. What’s more, Hubbell’s watertight Insulgrip Pin and Sleeve wiring devices are designed with safety first and foremost. We created the line with plant facility maintenance personnel and a safer industrial work environment in mind. To greatly reduce the likelihood of electrical shock, we developed our exclusive nonmetallic watertight system, meaning that with Hubbell on the job, the mix of electricity and water isn’t the threat it once was. So, whether the job calls for a welding outlet in a dry location or a motor disconnect in a wet location, step up to Hubbell Pin and Sleeve wiring devices.
• Locking ring provides UL Type 4X watertight, dust-tight seal
• Catalog number and rating visible while in use
• All-Brass sleeve contacts provide reliable electrical contact
