  11. Adapter Plate, Cast Aluminum, Metallic

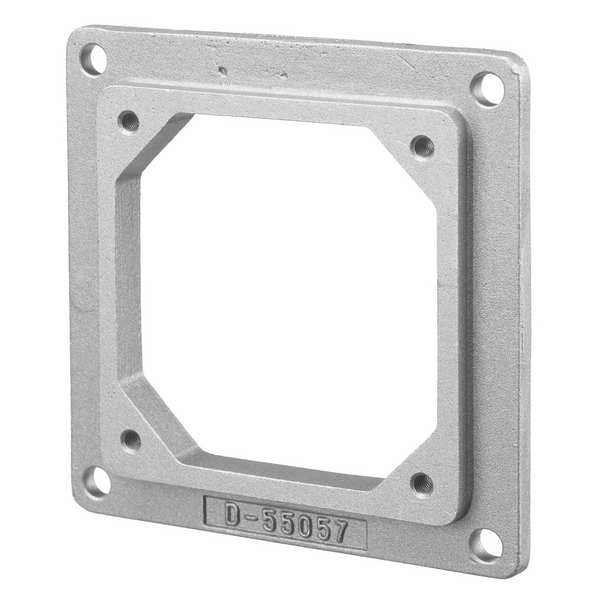

Hubbell Wiring Device-Kellems Adapter Plate, Cast Aluminum, Metallic HBL26402 - main

Adapter Plate, Cast Aluminum, Metallic

  • Mfr # HBL26402

  • Zoro # G3071801

product price: $164.70
/ea
Free Shipping & Returns

Key Features

Color
Metallic
Material
Cast Aluminum
Size
4.50"H x 4.50"W
Type
Straight
Standards
CSA Certified, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL26402
Zoro #
G3071801
UPC #
783585017341
Country of Origin
China

Dimensions

Size
4.50"H x 4.50"W
Width
0.41 in
Height
4.50 in
Length
4.50 in
Overall Width
0.41 in
Overall Height
4.5 in
Display Size
For 60 Amp Devices
Dimensions
4.50 in x 0.41 in x 4.50 in

Details

Item
Adapter Plate
Color
Metallic
Material
Cast Aluminum
Type
Straight
Standards
CSA Certified, UL Listed
For Use With
Receptacle Box 3D076
Compatible with Series
Receptacle Box 3D076
Product Type
Adapter Plate
Orientation
Straight
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Product Item
Straight Adapter Plate
Listings
UL/CSA
Device Color
Metallic
Moisture Resistance
IP30, IP44 Suitability
Temperature Rise
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Industry Standard(s)
Certified to CSA Standard Listed to UL Standard
Construction
Cast
Number Of Outlets
Accepts 1-Device
Knockouts
None
Material - Mounting Hardware
Mounting Screws
Item Type
Straight Adapter Plate
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Environmental - Moisture Resistance - IP44 Suitability

Description

The HUBBELL Adapter Plate is a straight adapter plate constructed from cast aluminum with a metallic finish. Designed for use with the Receptacle Box 3D076, it provides a mounting option for electrical devices and is suitable for 60 Amp applications. The plate accepts one device and features mounting screws for installation.


Key Features of the HUBBELL Adapter Plate:

  • Construction: Cast aluminum body offers strength and resistance to impact.

  • Compatibility: Designed for use with Receptacle Box 3D076; accepts one device.

  • Device Size: Suitable for 60 Amp devices.

  • Moisture Rating: IP30, IP44

  • Flammability Rating: UL 94 VO (receptacles/inlets), HB (plugs/connectors)

  • Standards/Certifications: CSA certified, UL listed.

  • Mounting Hardware: Includes mounting screws.
