Shop HUBBELL WIRING DEVICE-KELLEMS

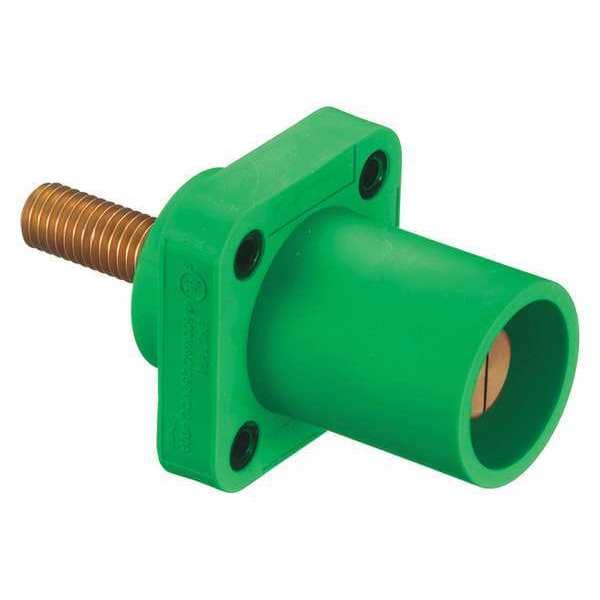

Angled Receptacle, Grn, Male, Threaded Stud

  • Mfr # HBLMRASGN
  • Zoro # G4818250
product price:
$
58.73
/ea

Key Features

Type
Angled Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
400 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBLMRASGN
Zoro #
G4818250
UPC #
-
Country of Origin
China

Dimensions

Minimum Wire Size
4 AWG
Maximum Wire Size
4/0 AWG
Threaded Stud Termination Length
1.25 in
Stud Thread Size
1/2"-13

Details

Item
Single Pole Receptacle
Type
Angled Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
4x
Fits
16 Series Female
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Amps AC/DC
400AC/DC
Mounting
Threaded Stud
Color
Green
Material
Thermoplastic Elastomer
Standards
cULus Listed, UL Listed
Terminal Connection Type
Threaded Stud
Phase
Single
NEMA Enclosure Rating
12, 3R, 4X
End Type
Taper Nose
Flange Shape
Square
Housing Material
Thermoplastic Elastomer
Connection Orientation
Angled
Contact Material
Brass
Mounting Style
Through Hole Mounting
Compatible with Series
16
Housing Color
Green
Gender
Male
Current / Amperage Rating
400 A
Voltage Rating Description
600V AC/DC
Style
Stud Type, Male
Amperage Rating
400 A

Description

The HUBBELL Angled Receptacle, Green, Male, Threaded Stud is a single pole device intended for use in temporary electrical power distribution applications. This angled receptacle is compatible with Series 16 devices and features a male connection with a threaded stud terminal.


Key Features of the HUBBELL Angled Receptacle:

  • Amperage Rating: Rated for up to 400 A (AC/DC)

  • Voltage Rating: Suitable for use at 600V AC or 250V DC

  • Connection Orientation: Angled design allows installation in limited space environments

  • Terminal Connection Type: Threaded stud terminal designed for attachment of compatible connectors/cables

  • Compatible Series: Fits Series 16 female connectors

  • Conductor & Contact Material: Brass contact material used in conductor and contact components

  • Taper Nose Style: Single pole device style with taper nose end type

  • Housing Material: Thermoplastic elastomer housing offers durability

  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements

  • Cable Size Range: Accepts wire sizes from minimum of 4 AWG to maximum of 4/0 AWG

  • Standards Compliance: cULus Listed and UL Listed for recognized performance standards
