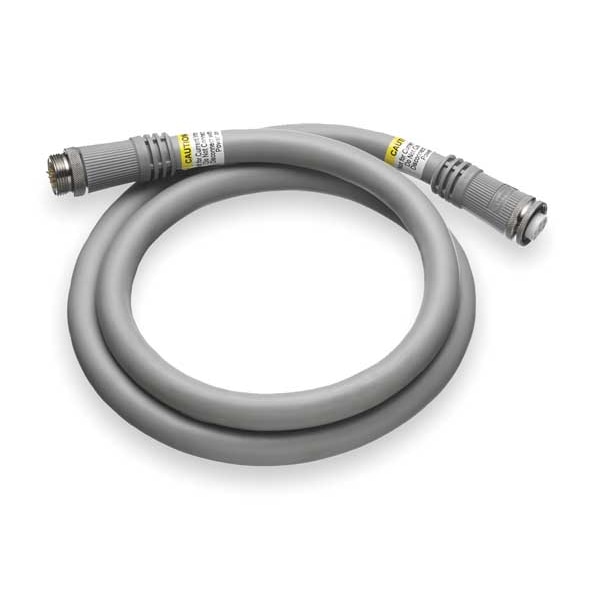

Hubbell Wiring Device-Kellems Cable Assy, Double Ended, 20A, 10 Ft, 6-Wire PH2306PB010 - main

Cable Assy, Double Ended, 20A, 10 Ft, 6-Wire

  • Mfr # PH2306PB010

  • Zoro # G2756433

product price:  $286.99
/ea
Free Shipping & Returns

Key Features

Max. Amps
20
Gauge/Conductor
1.2
Cable Length
10 ft
Number of Conductors
6
Wire Size
12 AWG; Neutral: 10 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PH2306PB010
Zoro #
G2756433
UPC #
783585354934
Country of Origin
United States

Dimensions

Cable Length
10 ft
Cord Length
10 ft
Wire Size
12 AWG; Neutral: 10 AWG
Cord Length (Ft.)
10 ft
Outside Diameter
0.77
Conductor Size
#12 AWG, #10 AWG Neutral

Details

Item
Extension Cable
Max. Amps
20
Gauge/Conductor
1.2
Number of Conductors
6
Jacket Color
Gray
Max. Voltage
600VAC
Amps AC
20 A
For Use With
2DZU4, 2DZU6, 2DZU7, 2DZU8, 2DZV4 Female Receptacle, 2DZV8 Male Receptacle, 2DZW1, 2DZW2, 2DZW3, 2DZW4 Tee
Plug End
Male/Female
Plug Type
6-Wire
Type
Double Ended, Super Neutral, Isolated Ground
Jacket Type
TC-ER
Enclosure Type
NEMA 4X
Conductor Material
Copper
Color
Green, Yellow, White, Black
Features
Double Ended; PVC Insulation; Super Neutral; Isolated Ground
Temp. Range
-20 Degrees to 105 Degrees C
Application
Quick Connect/Disconnect Signal and Control
Voltage Rating
600V AC
Maximum Operating Temperature
105 Degrees C
Component Type
Double-End Cable with Connectors
Number of Poles
6
Number of Wires
6
Current Rating
20 A
Contact Material
Copper
Gender Configuration
Male x Female
Minimum Operating Temperature
-20 Degrees C
NEMA Enclosure Rating
4X
Strands
Multi
Current / Amperage Rating
20 A
Item Type
Double Ended Cable, Male/Female Straight Connectors
Insulation
PVC
Amperage Rating
20 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
-20 Deg C to 105 Deg C
Construction
Fabricated
Conductor Type
Copper

Description

Cable Assembly, Component Type Double-End Cable with Connectors, Current Rating 20 A, Gender Configuration Male x Female, NEMA Enclosure Rating 4X, Number of Poles 6, Number of Wires 6, Voltage Rating 600V AC, Application Quick Connect/Disconnect Signal and Control, Color Gray, Contact Material Copper, Cord Length 10 ft, For Use With 2DZU4, 2DZU6, 2DZU7, 2DZU8, 2DZV4 Female Receptacle, 2DZV8 Male Receptacle, 2DZW1, 2DZW2, 2DZW3, 2DZW4 Tee, Jacket Type TC-ER
