  11. Ceiling Mount Sensor, Occupancy, Hard Wired, White, 2,000 sq ft, Incandescent

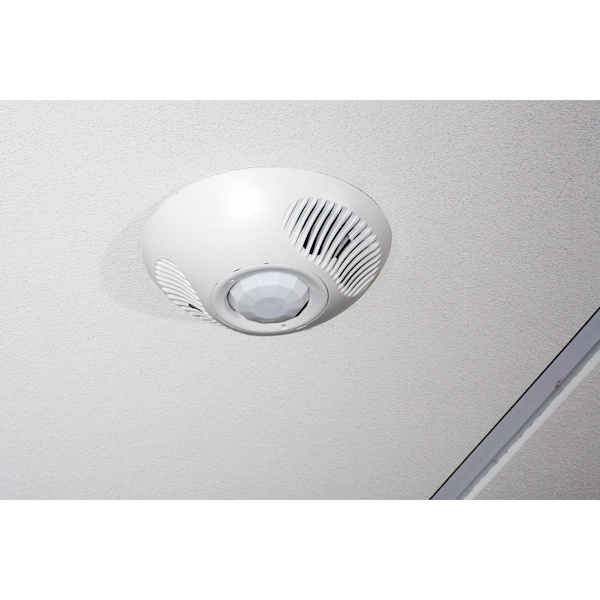

Hubbell Wiring Device-Kellems Ceiling Mount Sensor, Occupancy, Hard Wired, White, 2,000 sq ft, Incandescent ATD2000CL - main

Ceiling Mount Sensor, Occupancy, Hard Wired, White, 2,000 sq ft, Incandescent

  • Mfr # ATD2000CL

  • Zoro # G5399755

product price: $326.70
/ea
Free Shipping & Returns

Key Features

Use With - Motion Sensing and Dimming
Hubbell 167
Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
4 to 30 min
Coverage Angle - Motion Sensor
180 Degrees
Sensor Type
Passive Infrared/Ultrasonic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATD2000CL
Zoro #
G5399755
UPC #
783585256900
Country of Origin
China

Dimensions

Overall Depth
4.5 in
Overall Height
3.4 in
Maximum Mounting Height
12 ft
Minimum Mounting Height
8 ft
Dimensions
4.5"D x 3.4"H

Details

Use With - Motion Sensing and Dimming
Hubbell 167
Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
4 to 30 min
Coverage Angle - Motion Sensor
180 Degrees
Sensor Type
Passive Infrared/Ultrasonic
Max. Capacity @ 120VAC
1800W (Incandescent)
Watts @ 277V
2700
Max. Capacity @ 277VAC
2700W (Incandescent)
Color
White
Description/Special Features
Mounts Directly to 2-1/8 in Deep Octagon Box
Viewing Angle
180 Degrees
Time Delay
Adaptive
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Lighting Technology
Incandescent
Watts @ 120V
1800
Standards
ASHRAE 90.1, CEC Title 24 Compliant, cULus Listed, UL244A
Item
Occupancy Sensor
Communication Method
Hard Wired
Includes
Mounting Hardware
Wall Plate
Not Included
Maximum Time Delay
30 min
Power Relay Required
No
Compatible with Series
Dual
Series
H-Moss
Sensor Operation
Occupancy
Maximum Coverage Area
2,000 sq ft
Minimum Time Delay
4 min
Coverage Angle
180 Degrees
Minimum Operating Temperature
32 Degrees F
Time Delay Adjustment Method
Adaptive
Load Rating @ 277V AC
2,700W (Incandescent)
Compatible with Brand
Hubbell Wiring
Maximum Operating Temperature
104 Degrees F
Manufacturer Warranty
Limited Lifetime
Installation Location
Ceiling Mount
Load Rating @ 120V AC
1,800W, Incandescent
Housing
Flame retardant UL 94 V-0 ABS
Ambient Light
1 to 1000 foot candles
Storage Temperature
-20°F to 150°F (-29°C to 65°C); 0% to 95% non-condensing relative humidity
Ceiling mount wire guard
ACMG
Ceiling mount raceway adapter
ACMRA
Lens
Polyethylene
Operating Temperature
32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour
Power Supply
120-277V AC, 50/60Hz Single Phase
Passive Infrared
Red LED
Ultrasonic
Green LED
Sensitivity
Adaptive 0 to 100%
Compatible Manufacturer Model Number
Hubbell 167
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR), Operating Voltage 120 to 277V AC, Maximum Coverage Area 2,000 sq ft, Maximum Mounting Height 12 ft, Load Rating @ 120V AC 1,800W (Incandescent), Communication Method Hard Wired, Color White, Includes Mounting Hardware, Sensor Operation Occupancy, Lighting Technology Incandescent, Installation Location Ceiling, Standards ASHRAE 90.1, CEC Title 24 Compliant, cULus Listed, UL244A, Time Delay Adjustment Method Adaptive
