  11. Ceiling Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,000 sq ft, LED

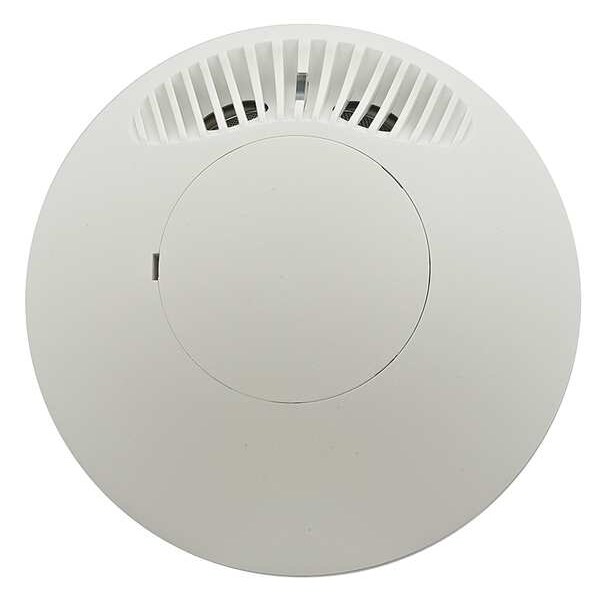

Hubbell Wiring Device-Kellems Ceiling Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,000 sq ft, LED ATU1000CRP - main

Ceiling Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,000 sq ft, LED

  • Mfr # ATU1000CRP

  • Zoro # G1428795

product price: $220.00
/ea
Free Shipping & Returns

Key Features

Use With - Motion Sensing and Dimming
Hubbell CU300A, CU300HD, CU300M
Sensing Technology
Ultrasonic
Time Delay - Motion Sensor
8 to 40 min
Standards
ASHRAE 90.1, cULus Listed, UL244A
Time Delay
Adaptive/Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATU1000CRP
Zoro #
G1428795
UPC #
783585392479
Country of Origin
China

Dimensions

Height
1.5 in
Overall Diameter
4.5 in
Maximum Mounting Height
12 ft
Minimum Mounting Height
8 ft
Overall Height
1.5 in

Details

Use With - Motion Sensing and Dimming
Hubbell CU300A, CU300HD, CU300M
Sensing Technology
Ultrasonic
Time Delay - Motion Sensor
8 to 40 min
Standards
ASHRAE 90.1, cULus Listed, UL244A
Time Delay
Adaptive/Manual
Includes
Isolated Relay
Color
White
Max. Capacity @ 120VAC
Dependent on Control Unit Rating
Sensor Type
Ultrasonic
Item
Occupancy Sensor
Max. Capacity @ 277VAC
Dependent on Control Unit Rating
Coverage Angle - Motion Sensor
180 Degrees
Viewing Angle
180 Degrees
Description/Special Features
Isolated Relay and Photocell
Lighting Technology
LED
Communication Method
Hard Wired
Wall Plate
Not Included
Series
Ultrasonic
Maximum Time Delay
40 min
Maximum Coverage Area
1,000 sq ft
Minimum Operating Temperature
32 Degrees F
Compatible with Series
Ultrasonic
Sensor Operation
Occupancy, Photocell
Minimum Time Delay
8 min
Installation Location
Ceiling Mount
Manufacturer Warranty
Limited Lifetime
Power Relay Required
Yes
Load Rating @ 120V AC
Dependent on Control Unit Rating
Time Delay Adjustment Method
Adaptive
Compatible with Brand
Hubbell Wiring
Load Rating @ 277V AC
Dependent on Control Unit Rating
Coverage Angle
180 Degrees
Maximum Operating Temperature
104 Degrees F
Humidity
0% to 95% non-condensing relative humidity
OEM Brand Name
Hubbell Wiring Device-Kellems
Version
Unit with Relay and Photocell
Operating Cycles
6,000 Cycles Minimum
Indicator(s) Type
Ultrasonic= Green LED
Supply Voltage
24V DC From Control Unit
Sensitivity
Adaptive 0 to 100%
Ceiling mount raceway adapter
ACMRA
Photocell
Yes
Isolated Relay
Normally open and normally closed terminals available
Storage Temperature
-20°F to 150°F (-29°C to 65°C); 0% to 95% non-condensing relative humidity
Ultrasonic
Green LED
Material
ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
Power Requirements
24V DC nominal, 33mA from Hubbell CU series control unit
Ambient Light
1 to 1000 foot candles
Operating Temperature
32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour
Load Capacity
Load Is A Function Of The Control Unit
Ceiling mount wire guard
ACMG
Control Unit Manual-ON
CU300M
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Control Unit Auto-ON
CU300A
Control Unit, HD, Latching, Auto/Manual-ON
CU300HD
Material - Mounting Hardware
Screw Mounting
Compatible Manufacturer Model Number
CU300A, CU300HD, CU300M
Operating Voltage
24V DC

Description

Occupancy Sensor, Sensing Technology Ultrasonic, Operating Voltage 24V DC, Maximum Coverage Area 1,000 sq ft, Maximum Mounting Height 12 ft, Load Rating @ 120V AC Dependent on Control Unit Rating, Communication Method Hard Wired, Color White, Includes Isolated Relay, Sensor Operation Occupancy, Photocell, Lighting Technology LED, Installation Location Ceiling, Standards ASHRAE 90.1, cULus Listed, UL244A, Overall Diameter 4.5 in, Time Delay Adjustment Method Adaptive, Maximum Time Delay 40 min
