  11. Ceiling Mount, Wall Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,600 sq ft, LED

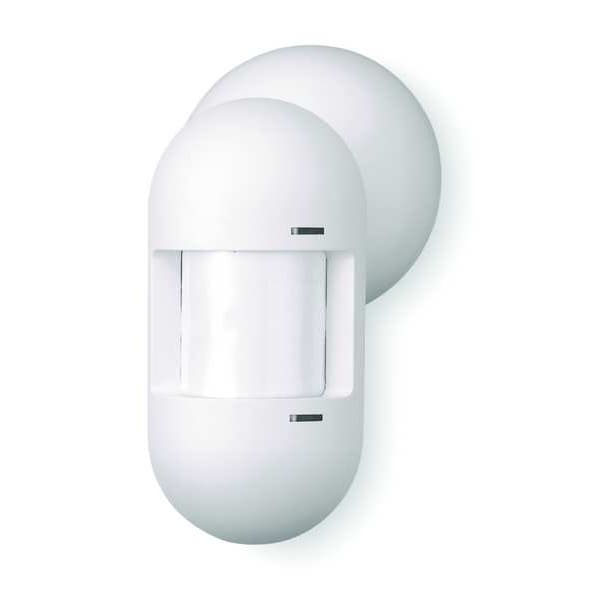

Hubbell Wiring Device-Kellems Ceiling Mount, Wall Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,600 sq ft, LED ATP1600WRP - main

Ceiling Mount, Wall Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,600 sq ft, LED

  • Mfr # ATP1600WRP

  • Zoro # G1446627

product price: $187.50
/ea
Free Shipping & Returns

Key Features

Use With - Motion Sensing and Dimming
Hubbell CU300A, CU300HD, CU300M
Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
8 to 40 min
Max. Capacity @ 120VAC
Dependent on Control Unit Rating
Includes
Isolated Relay
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATP1600WRP
Zoro #
G1446627
UPC #
783585349237
Country of Origin
China

Dimensions

Width
2 in
Height
6 in
Maximum Mounting Height
12 ft
Minimum Mounting Height
8 ft
Overall Width
2 in
Overall Diameter
1.5 in
Overall Height
6 in

Details

Use With - Motion Sensing and Dimming
Hubbell CU300A, CU300HD, CU300M
Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
8 to 40 min
Max. Capacity @ 120VAC
Dependent on Control Unit Rating
Includes
Isolated Relay
Lighting Technology
LED
Color
White
Standards
ASHRAE 90.1, cULus Listed, UL244A
Time Delay
Adaptive/Manual
Sensor Type
Passive Infrared
Coverage Angle - Motion Sensor
115 Degrees
Description/Special Features
Isolated Relay and Photocell
Viewing Angle
115 Degrees
Item
Occupancy Sensor
Max. Capacity @ 277VAC
Dependent on Control Unit Rating
Communication Method
Hard Wired
Wall Plate
Not Included
Sensor Operation
Occupancy, Photocell
Minimum Operating Temperature
32 Degrees F
Manufacturer Warranty
Limited Lifetime
Power Relay Required
Yes
Installation Location
Ceiling Mount, Wall Mount
Maximum Operating Temperature
104 Degrees F
Maximum Coverage Area
1,600 sq ft
Load Rating @ 120V AC
Dependent on Control Unit Rating
Time Delay Adjustment Method
Adaptive
Compatible with Brand
Hubbell Wiring
Coverage Angle
110 Degrees
Minimum Time Delay
8 min
Load Rating @ 277V AC
Dependent on Control Unit Rating
Maximum Time Delay
40 min
Material - Mounting Hardware
Screw Mounting
Load Capacity
Load Is A Function Of The Control Unit
Humidity
0% to 95% non-condensing relative humidity
Isolated Relay
Normally open and normally closed, terminals available
Power Requirements
24V DC nominal, 33mA from Hubbell CU series control unit
Photocell
Yes
Operating Temperature
32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour
CU300M
Control Unit, HD, Latching,
CU300HD
Wall Switch Wire Guard
Ambient Light
1 to 1000 foot candles
Version
Unit with Relay and Photocell
Passive Infrared
Red LED
Supply Voltage
Low Voltage V
Indicator(s) Type
PIR= Red LED
Series
Passive Infrared
Material
ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
Operating Cycles
6,000 Cycles Minimum
Storage Temperature
-20°F to 150°F (-29°C to 65°C); 0% to 95% non-condensing relative humidity
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Sensitivity
Adaptive 0 to 100%
CU300A
Control Unit Manual-ON
Compatible Manufacturer Model Number
CU300A, CU300HD, CU300M
Operating Voltage
24V DC

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR), Operating Voltage 24V DC, Maximum Coverage Area 1,600 sq ft, Maximum Mounting Height 12 ft, Load Rating @ 120V AC Dependent on Control Unit Rating, Communication Method Hard Wired, Color White, Includes Isolated Relay, Sensor Operation Occupancy, Photocell, Lighting Technology LED, Installation Location Wall, Standards ASHRAE 90.1, cULus Listed, UL244A, Overall Diameter 1.5 in, Time Delay Adjustment Method Adaptive
