  9. Connector, 3R, 4X, 12, Single Pin, Yellow

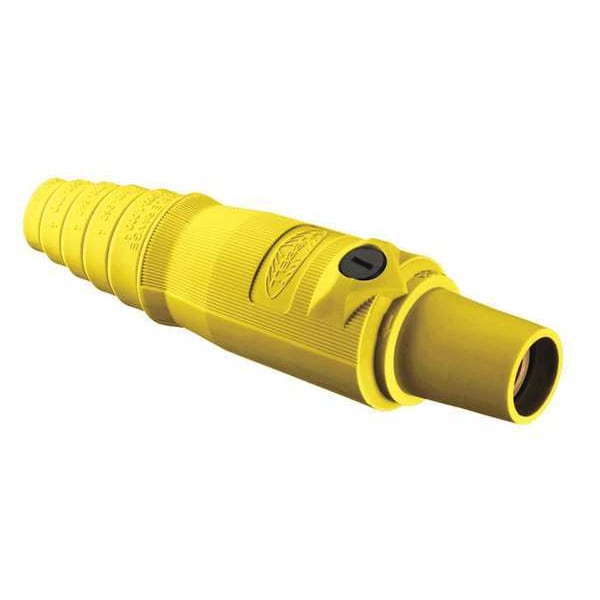

Hubbell Wiring Device-Kellems Connector, 3R, 4X, 12, Single Pin, Yellow HBL300FY - main

Connector, 3R, 4X, 12, Single Pin, Yellow

  • Mfr # HBL300FY

  • Zoro # G6102686

product price: $46.69
/ea

Key Features

Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
300 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL300FY
Zoro #
G6102686
UPC #
783585112077
Country of Origin
China

Dimensions

Power Terminals Wire Size
#6 to 2/0
Overall Length
7.1 in
Minimum Wire Size
6 AWG
Overall Width
1.95 in
Maximum Wire Size
2/0 AWG

Details

Item
Connector
Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
300 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Material
Thermoplastic Elastomer
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Fits
UL1691
Amps AC/DC
300AC/DC
Color
Yellow
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Cable Range
6 to 2/0
Amps AC
300 A
Compatible with Series
16
NEMA Enclosure Rating
12, 3R, 4X
Contact Material
Brass
End Type
Taper Nose
Contact Type
Single Cam
Gender
Female
Housing Material
Thermoplastic Elastomer
UL 94 Flammability Rating
HB
Terminal Connection Type
Double Set Screw
Housing Color
Yellow
Current / Amperage Rating
300 A
Amperage Rating
300 A
Voltage Rating Description
600V AC/DC
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #6 to 2/0 AWG
Style
Female

Description

The HUBBELL Connector, Series 16, is a single pole female connector intended for use in temporary electrical power distribution applications. It features a brass single cam contact and thermoplastic elastomer housing, suitable for cable sizes ranging from 6 AWG to 2/0 AWG. The connector is rated for up to 300 A and supports voltage ratings of 600V AC or 250V DC. Designed with a taper nose style and double set screw terminal connection, it allows secure assembly without special tools.


Key Features of the HUBBELL - Connector,3R, 4X, 12,Single Pin:

  • Amperage Rating: Rated for up to 300 A (AC/DC)

  • Voltage Rating: Supports up to 600V AC or 250V DC

  • Cable Range: Accepts wire sizes from #6 AWG to 2/0 AWG

  • Contact Material: Brass single cam contact

  • Terminal Connection Type: Double set screw design secures conductors in place

  • Housing Material: Thermoplastic elastomer housing enhances durability

  • NEMA Enclosure Ratings: Suitable for use in NEMA Types 3R, 4X, and 12 enclosures

  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed/cUL Listed requirements; fits UL1691 standard

  • Series Compatibility: Compatible with Hubbell Series 16 devices
