Shop HUBBELL WIRING DEVICE-KELLEMS

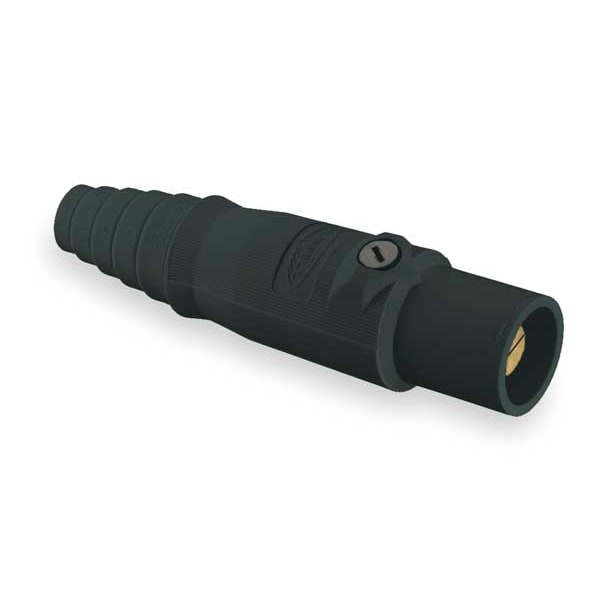

Connector, Double Set, Blk, Taper Nose, Male

  • Mfr # HBL300MBK

  • Zoro # G2062155

product price:  $46.35
/ea

Key Features

Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
300 A
Voltage Rating
600V AC, 600V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL300MBK
Zoro #
G2062155
UPC #
783585112084
Country of Origin
China

Dimensions

Maximum Wire Size
2/0 AWG
Overall Length
7.01 in
Overall Width
1.95 in
Minimum Wire Size
6 AWG
Wire Rope Length
7.01 in

Details

Item
Single Pole Inline
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
300 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Cable Range
6 to 2/0
Amps AC/DC
300AC/DC
Material
Thermoplastic Elastomer
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Conductor Material
Brass
Color
Black
Single Pole Device Style
Taper Nose
Amps AC
300 A
End Type
Taper Nose
NEMA Enclosure Rating
12, 3R, 4X
Contact Material
Brass
Contact Type
Single Cam
UL 94 Flammability Rating
HB
Gender
Male
Terminal Connection Type
Double Set Screw
Housing Color
Black
Compatible with Series
15; 16; Insulgrip
Housing Material
Thermoplastic Elastomer

Description

The HUBBELL Connector, Double Set, Black, Taper Nose, Male is a single pole connector intended for temporary electrical power distribution. It features a male taper nose end and utilizes a double set screw terminal connection for conductor attachment within the specified cable range. The housing is constructed from thermoplastic elastomer and incorporates an Insulgrip® style design.


Key Features of the HUBBELL Connector, Double Set, Taper Nose, Male:

  • Current Rating: Rated for 300 A AC/DC

  • Voltage Rating: 250V DC / 600V AC

  • Cable Range: Accepts wire sizes from 6 AWG to 2/0 AWG

  • Terminal Connection Type: Double set screw terminal connection provides secure conductor retention

  • Contact Material: Brass single cam contact ensures reliable conductivity

  • Housing Material: Thermoplastic elastomer with non-conductive retaining screw

  • NEMA Enclosure Ratings: For use in NEMA Types 12K, 3R, and 4X enclosures

  • Standards Compliance: Meets ANSI/NFPA 70; cUL Listed; National Electric Code (NEC); UL Enclosure Types 3R, 4X, and 12; UL Listed requirements

  • Compatible Series: For use with Series 15 and Series 16 devices as well as Insulgrip components
