  9. Connector, Double Set Screw, Red, Male

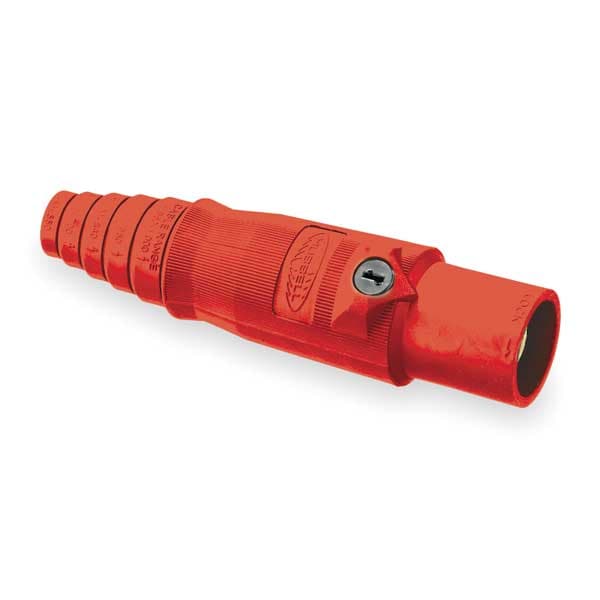

Hubbell Wiring Device-Kellems Connector, Double Set Screw, Red, Male HBL400MR - main

Connector, Double Set Screw, Red, Male

  • Mfr # HBL400MR

  • Zoro # G2861467

product price: $44.15
/ea

Key Features

Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL400MR
Zoro #
G2861467
UPC #
783585112312
Country of Origin
China

Dimensions

Minimum Wire Size
2/0 AWG
Maximum Wire Size
4/0 AWG
Overall Length
7.01 in
Overall Width
1.95 in

Details

Item
Connector
Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Color
Red
Cable Range
2/0 to 4/0
Material
Thermoplastic Elastomer
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC/DC
400AC/DC
Conductor Material
Brass
Single Pole Device Style
Taper Nose
Amps AC
400 A
Contact Material
Brass
Housing Color
Red
Terminal Connection Type
Double Set Screw
Compatible with Series
15; 16; Insulgrip
End Type
Taper Nose
NEMA Enclosure Rating
12, 3R, 4X
Housing Material
Thermoplastic Elastomer
UL 94 Flammability Rating
HB
Contact Type
Single Cam
Gender
Male
Voltage Rating Description
600V AC/DC
Amperage Rating
400 A
Current / Amperage Rating
400 A
Style
Male
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - 2/0 to 4/0 AWG
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Insulgrip® Style Housing for Superior Gripping
• Non-Conductive Retaining Screw locks contacts in place
• Large Raised Alignment Arrow aids in the mating of devices
