  9. Connectr, 3R, 4X, 12, Male, Orange, 6 to 2/0

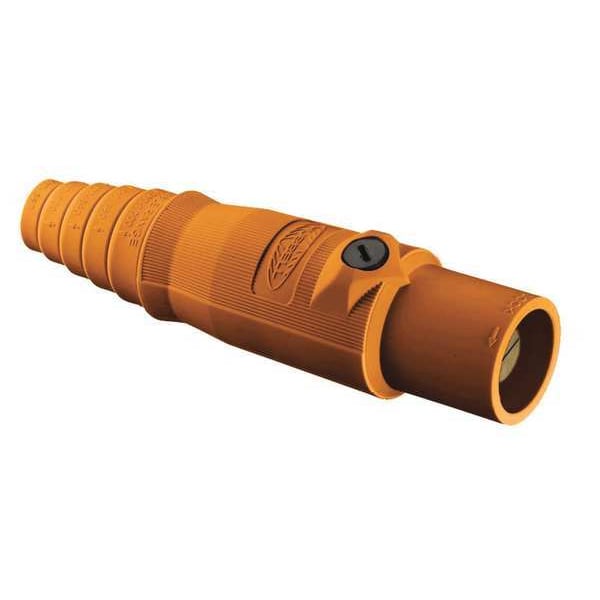

Hubbell Wiring Device-Kellems Connectr, 3R, 4X, 12, Male, Orange, 6 to 2/0 HBL300MO - main

Connectr, 3R, 4X, 12, Male, Orange, 6 to 2/0

  • Mfr # HBL300MO

  • Zoro # G6106353

product price: $46.69
/ea

Key Features

Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
300 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL300MO
Zoro #
G6106353
UPC #
783585112121
Country of Origin
China

Dimensions

Power Terminals Wire Size
#6 to 2/0
Minimum Wire Size
6 AWG
Overall Length
7.01 in
Maximum Wire Size
2/0 AWG
Overall Width
1.95 in

Details

Item
Connector
Type
Plugs
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
300 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Fits
UL1691
Cable Range
6 to 2/0
Single Pole Device Style
Taper Nose
Material
Thermoplastic Elastomer
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Color
Orange
Conductor Material
Brass
Amps AC/DC
300AC/DC
Amps AC
300 A
Housing Material
Thermoplastic Elastomer
Terminal Connection Type
Double Set Screw
NEMA Enclosure Rating
12, 3R, 4X
Gender
Male
Contact Material
Brass
End Type
Taper Nose
UL 94 Flammability Rating
HB
Compatible with Series
15; 16; Insulgrip
Housing Color
Orange
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #6 to 2/0 AWG
Voltage Rating Description
600V AC/DC
Amperage Rating
300 A
Current / Amperage Rating
300 A
Style
Male
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12

Description

The HUBBELL Connectr,3R, 4X, 12,Male,Orange,6 to 2/0 is a single pole male connector intended for use in temporary electrical power distribution. It accommodates cable sizes from 6 AWG to 2/0 AWG and features a double set screw terminal connection.


Key Features of the HUBBELL Single Pole Male Connector:

  • Amperage Rating: Rated for up to 300 A AC/DC

  • Voltage Rating: Supports up to 600V AC or 250V DC

  • Cable Range: Accepts wire sizes from #6 AWG to 2/0 AWG

  • Terminal Connection Type: Double set screw design holds conductors in place

  • Housing Material: Thermoplastic elastomer housing provides durability and insulation

  • NEMA Enclosure Ratings: Suitable for use with NEMA Types 3R, 4X, and 12 enclosures

  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed/cUL Listed requirements

  • Taper Nose Style: Taper nose single pole device compatible with Series 16 applications
