  11. Cord Connector, 1-1/4 in., 45

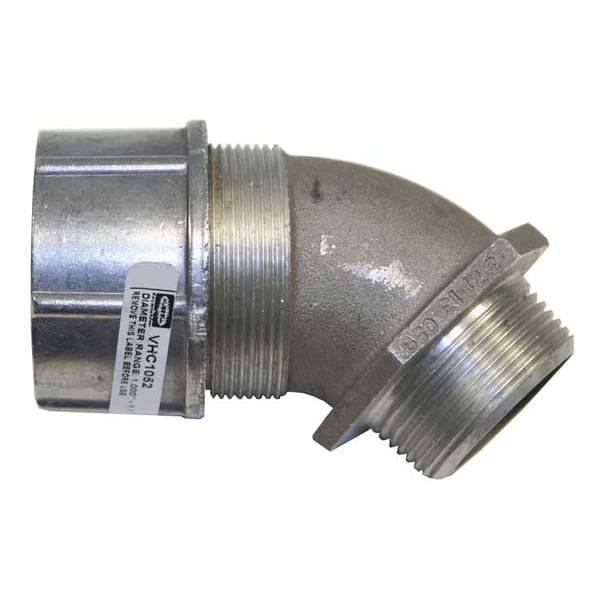

Hubbell Wiring Device-Kellems Cord Connector, 1-1/4 in., 45 VHC1052 - main

Cord Connector, 1-1/4 in., 45

  • Mfr # VHC1052

  • Zoro # G2349700

product price: $61.15
/ea

Key Features

Material
Aluminum
Box Connection
1 1/4 in MNPT
Gland Color Code
No Code
Connector Type
45 Degrees
Style - Connector
45 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VHC1052
Zoro #
G2349700
UPC #
783585202525
Country of Origin
United States

Dimensions

Length - External Strain Relief
No External Strain Relief
Length
3.90"
Hub Trade Size
1-1/4"
Min. Throat Dia.
1.25"
Length - Box to End of Connector
3 7/8 in
Cord Dia. Range
1.00 in to 1.13 in
Hub Size
1 1/4 in MNPT
Form Size
F5
Thread Size
1 1/4 in
Compatible Conduit Trade Size
1 1/4 in
Dimension D
1.25" (31.7) Throat Dia.
Dimension E A/C
2.45" (62.2)
Dimension A
3.90" (99.1) Ref.
Dimension C
.74" (18.8)
Dimension E A/F
2.13" (54.0)
Recommended Knockout Hole Size
1.72"- 1.77" (43.7-44.9)
Dimension B
3.90" (9.91) Ref.
Cord Diameter Range
1.00"- 1.13" (25.4- 28.6)
Dimension G
2.31" (58.7)
Display Size
1 1/4" NPT

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
1 1/4 in MNPT
Gland Color Code
No Code
Connector Type
45 Degrees
Style - Connector
45 Degrees
Male/Female
Male
Number of Cords
1
Insulated
No
Standards
CSA Certified, Title 46-Part 111, UL 514B, United States Coast Guard Approval
Material - Cord Connector
Aluminum
Strain Relief Type
No External Strain Relief
Item - Cord Connector
Liquid Tight Cord Connector
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Body Color - Cord Connector
Silver
Liquid Tight / Dust Tight
Liquid Tight
Material - External Strain Relief
No External Strain Relief
For Use With
Kellems Wire Management
Thread Gender
Male
Maximum Operating Temperature
225 Degrees F
Compatible Conduit Type
Liquid Tight Cord Connector
Environmental Rating
Hazardous Locations
Body Material
Aluminum
Body Color
Silver
Liquid Tight
Yes
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
For Minimum Cable OD
1 in
IP Rating
IP66
Thread Type
NPT Thread
Collar Material
Aluminum
Minimum Operating Temperature
-30 Degrees F
Connection Orientation
45 Degrees
Grommet Color Code
No Code
For Maximum Cable OD
1.13 in
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Material/Style
Cast Aluminum
Product Type
Cord Connectors
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Cord Connector Body Style
45 Degree Male
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Number Of Conductors
Single
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Industry Standard(s)
UL Listed
Material - Mounting Hardware
Locknut or Tapped Opening
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Item Type
Cord Connectors
Type
45 Degree Male
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Series
Standard Duty
Application
45 Degree Male- Form 5
Conductor Range
1-1.13 in (25.4- 28.6 mm)

Description

Liquid Tight Cord Connector, Cord Dia. Range 1.00 in to 1.13 in, Box Connection 1 1/4 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 45 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 3 7/8 in, Insulated No
