  11. Cord Connector, 1/2 in., 45, Brown

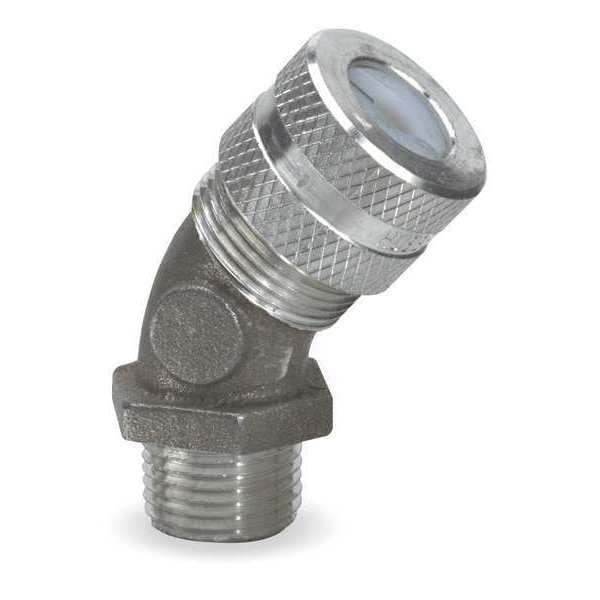

Hubbell Wiring Device-Kellems Cord Connector, 1/2 in., 45, Brown VHC1024 - main

Cord Connector, 1/2 in., 45, Brown

  • Mfr # VHC1024

  • Zoro # G2686074

product price: $21.19
/ea

Key Features

Material
Aluminum
Box Connection
1/2 in MNPT
Gland Color Code
Brown
Standards
CSA LR27378, Title 46-Part 111, UL E54218(M), United States Coast Guard Approval
Color
Brown
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VHC1024
Zoro #
G2686074
UPC #
783585202242
Country of Origin
United States

Dimensions

Length
1.90"
Cord Dia. Range
0.50 in to 0.63 in
Min. Throat Dia.
0.56"
Length - External Strain Relief
No External Strain Relief
Hub Trade Size
1/2"
Length - Box to End of Connector
2 in
Hub Size
1/2 in MNPT
Thread Size
1/2 in
Form Size
F2
Compatible Conduit Trade Size
1/2 in
Dimension D
.56" (14.2) Throat Dia.
Dimension G
1.13" (28.6) Dia.
Recommended Knockout Hole Size
.86"- .91" (21.8-23.0)
Dimension E A/C
1.27" (32.3)
Dimension A
2.00" (50.8) Ref.
Dimension C
.55" (14.0)
Cord Diameter Range
.50"- .63" (12.7- 15.9)
Dimension B
1.90" (48.3) Ref.
Dimension E A/F
1.10" (27.9)
Display Size
1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
1/2 in MNPT
Gland Color Code
Brown
Standards
CSA LR27378, Title 46-Part 111, UL E54218(M), United States Coast Guard Approval
Color
Brown
Number of Cords
1
Style - Connector
45 Degrees
Connector Type
45 Degrees
Liquid Tight / Dust Tight
Liquid Tight
Material - External Strain Relief
No External Strain Relief
Male/Female
Male
Insulated
No
Item - Cord Connector
Liquid Tight Cord Connector
Material - Cord Connector
Aluminum
Body Color - Cord Connector
Silver
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Strain Relief Type
No External Strain Relief
For Use With
Kellems Wire Management
Minimum Operating Temperature
-30 Degrees F
Body Color
Silver
For Minimum Cable OD
0.5 in
Body Material
Aluminum
For Maximum Cable OD
0.63 in
Maximum Operating Temperature
225 Degrees F
Thread Type
NPT Thread
IP Rating
IP66
Liquid Tight
Yes
Compatible Conduit Type
Liquid Tight Cord Connector
Environmental Rating
Hazardous Locations
Collar Material
Aluminum
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Grommet Color Code
Brown
Connection Orientation
45 Degrees
Thread Gender
Male
Cord Connector Body Style
45 Degree Male
Color Code
Brown
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Material/Style
Aluminum
Product Type
Cord Connectors
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Series
Standard Duty
Industry Standard(s)
UL Listed
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number Of Conductors
Single
Material - Mounting Hardware
Locknut or Tapped Opening
Type
45 Degree Male
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Conductor Range
0.5-0.63 in (12.7- 15.9 mm)
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Application
45 Degree Male- Form 2
Item Type
Cord Connectors

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.50 in to 0.63 in, Box Connection 1/2 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Brown, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 45 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 2 in, Insulated No
