  11. Cord Connector, 3/4 in., 45, Yellow

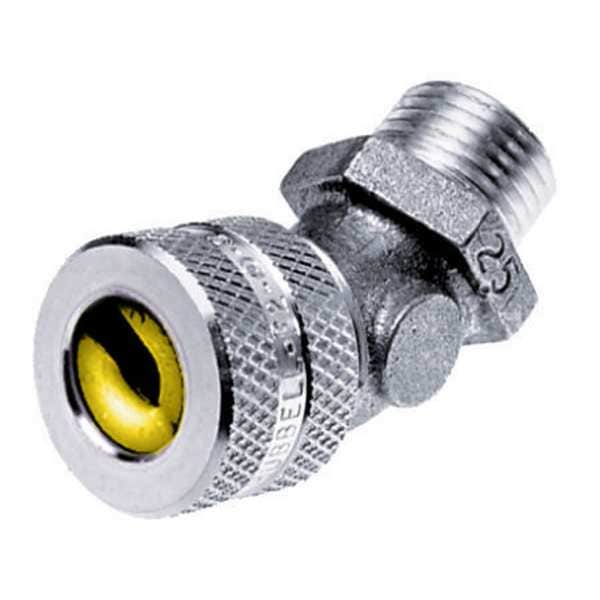

Hubbell Wiring Device-Kellems Cord Connector, 3/4 in., 45, Yellow VHC1037 - main

Cord Connector, 3/4 in., 45, Yellow

  • Mfr # VHC1037

  • Zoro # G3271134

product price: $34.89
/ea

Key Features

Material
Aluminum
Box Connection
3/4 in MNPT
Male/Female
Male
Length
2.50"
Strain Relief Type
No External Strain Relief
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VHC1037
Zoro #
G3271134
UPC #
783585202372
Country of Origin
United States

Dimensions

Length
2.50"
Cord Dia. Range
0.63 in to 0.75 in
Length - Box to End of Connector
2 5/16 in
Hub Trade Size
3/4"
Length - External Strain Relief
No External Strain Relief
Min. Throat Dia.
0.75"
Hub Size
3/4 in MNPT
Form Size
F3
Thread Size
3/4 in
Compatible Conduit Trade Size
3/4 in
Dimension C
.56" (14.2)
Dimension D
.75" (19.0) Throat Dia.
Dimension G
1.38" (34.9) Dia.
Cord Diameter Range
.63"- .75" (15.9- 19.0)
Dimension B
2.50" (65.3) Ref.
Recommended Knockout Hole Size
1.09"- 1.14" (27.8-29.0)
Dimension E A/C
1.48" (37.6)
Dimension E A/F
1.28" (32.5)
Dimension A
2.30" (58.4) Ref.
Display Size
3/4" NPT

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
3/4 in MNPT
Male/Female
Male
Strain Relief Type
No External Strain Relief
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Liquid Tight / Dust Tight
Liquid Tight
Gland Color Code
Yellow
Material - External Strain Relief
No External Strain Relief
Material - Cord Connector
Aluminum
Body Color - Cord Connector
Silver
Item - Cord Connector
Liquid Tight Cord Connector
Standards
CSA LR27378, Title 46-Part 111, UL E54218(M), United States Coast Guard Approval
Connector Type
45 Degrees
Insulated
No
Color
Yellow
Number of Cords
1
Style - Connector
45 Degrees
For Use With
Kellems Wire Management
Application
45 Degree Male- Form 3
Body Color
Silver
Liquid Tight
Yes
Compatible Conduit Type
Liquid Tight Cord Connector
Body Material
Aluminum
Thread Gender
Male
Collar Material
Aluminum
For Minimum Cable OD
0.63 in
Connection Orientation
45 Degrees
Grommet Color Code
Yellow
Minimum Operating Temperature
-30 Degrees F
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Thread Type
NPT Thread
Environmental Rating
Hazardous Locations
Maximum Operating Temperature
225 Degrees F
For Maximum Cable OD
0.75 in
IP Rating
IP66
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Product Type
Cord Connectors
Material/Style
Aluminum
Color Code
Yellow
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Cord Connector Body Style
45 Degree Male
Number Of Conductors
Single
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Industry Standard(s)
UL Listed
Conductor Range
0.63- 0.75 in (15.9- 19.0 mm)
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Series
Standard Duty
Item Type
Cord Connectors
OEM Brand Name
Hubbell Wiring Device-Kellems
Type
45 Degree Male
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Material - Mounting Hardware
Locknut or Tapped Opening

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.63 in to 0.75 in, Box Connection 3/4 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Yellow, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 45 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 2 5/16 in, Insulated No
