  11. Cord Connector, 3/8 in., Straight, Gray

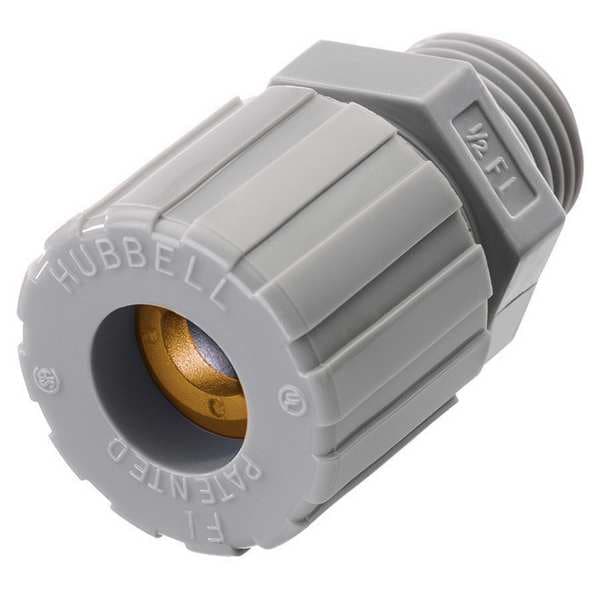

Hubbell Wiring Device-Kellems Cord Connector, 3/8 in., Straight, Gray SHC1008CR - main

Cord Connector, 3/8 in., Straight, Gray

  • Mfr # SHC1008CR

  • Zoro # G2349676

product price: $9.45
/ea

Key Features

Material
Nylon
Box Connection
3/8 in MNPT
Length - Box to End of Connector
1 1/8 in
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Number of Cords
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1008CR
Zoro #
G2349676
UPC #
783585207902
Country of Origin
United States

Dimensions

Length - Box to End of Connector
1 1/8 in
Hub Trade Size
3/8"
Length
1.53"
Cord Dia. Range
0.13 in to 0.19 in
Min. Throat Dia.
0.45"
Length - External Strain Relief
No External Strain Relief
Hub Size
3/8 in MNPT
Overall Length
1 9/16 in
Compatible Conduit Trade Size
3/8 in
Thread Size
3/8 in
Form Size
F1
Dimension A
1.00" (25.4) Dia.
Dimension C
.43" (10.9)
Recommended Knockout Hole Size
.67"- .70" (17.0-17.8)
Dimension D
.45" (11.4) Throat Dia.
Dimension E A/F
.93" (23.6)
Cord Diameter Range
.13"- .19" (3.2- 4.7)
Dimension B
1.10" (27.9) Ref.
Dimension E A/C
1.00" (25.4)
Display Size
3/8" NPT

Details

Item
Liquid Tight Cord Connector
Material
Nylon
Box Connection
3/8 in MNPT
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Number of Cords
1
Strain Relief Type
No External Strain Relief
Material - External Strain Relief
No External Strain Relief
Insulated
Yes
Liquid Tight / Dust Tight
Liquid Tight
Standards
CSA Certified, Title 46-Part 111, UL 514B, United States Coast Guard Approval
Male/Female
Male
Color
Gray
Material - Cord Connector
Nylon
Body Color - Cord Connector
Gray
Style - Connector
Straight
Connector Type
Straight
Item - Cord Connector
Liquid Tight Cord Connector
Gland Color Code
Orange
For Use With
Kellems Wire Management
Thread Type
NPT Thread
Compatible Conduit Type
Liquid Tight Cord Connector
Maximum Operating Temperature
225 Degrees F
Body Material
Nylon
For Maximum Cable OD
0.19 in
Body Color
Gray
Environmental Rating
Not Flammable, Hazardous Locations
Connection Orientation
Straight
Thread Gender
Male
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Minimum Operating Temperature
-30 Degrees F
Grommet Color Code
Orange
Resistance Properties
Corrosion Resistant
Liquid Tight
Yes
For Minimum Cable OD
0.13 in
IP Rating
IP66
Collar Material
Nylon
Bushing Material
Neoprene
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Cord Connector Body Style
Straight Male
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Color Code
Orange
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Product Type
Cord Connectors
Material/Style
Nylon Standard Style
Performance
Environmental - Flammability - UL 94-V2 Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Straight Male- Form 1
Series
Standard Duty
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number Of Conductors
Single
Conductor Range
0.13-0 .19 in (3.2- 4.7 mm)
Item Type
Cord Connectors
Type
Straight Male
Industry Standard(s)
UL Listed
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Material - Mounting Hardware
Locknut or Tapped Opening

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.13 in to 0.19 in, Box Connection 3/8 in MNPT, Material - Cord Connector Nylon, External Strain Relief Material No External Strain Relief, Gland Color Code Orange, Body Color - Cord Connector Gray, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 1/8 in, Insulated Yes
