  9. Double Conenctor, 150AC/DC, Taper Nose, Grn

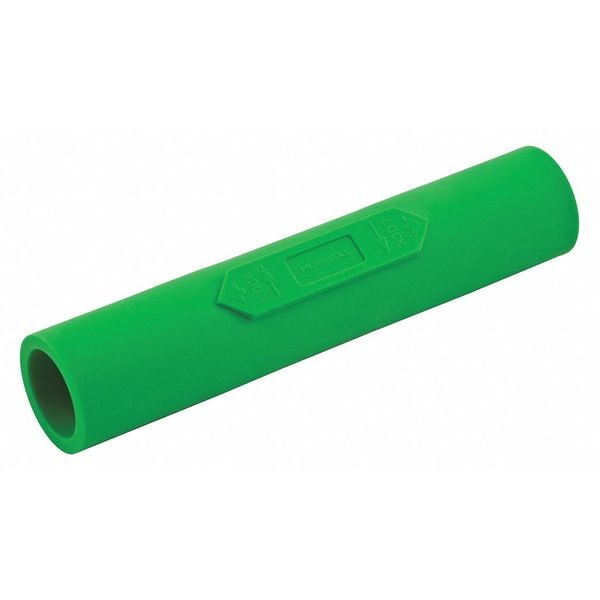

Hubbell Wiring Device-Kellems Double Conenctor, 150AC/DC, Taper Nose, Grn HBL15DMGN - main

Double Conenctor, 150AC/DC, Taper Nose, Grn

  • Mfr # HBL15DMGN

  • Zoro # G6466424

product price: $49.95
/ea

Key Features

Type
Gender Reversing
Series
15
Male/Female
Male-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15DMGN
Zoro #
G6466424
UPC #
783585458670
Country of Origin
China

Dimensions

Overall Width
0.92 in
Overall Height
4.22 in
Display Size
Standard

Details

Item
Double Connector
Type
Gender Reversing
Series
15
Male/Female
Male-Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Material
Thermoplastic Elastomer
Standards
cUL, UL
Fits
UL1691
Single Pole Device Style
Taper Nose
Amps AC/DC
150AC/DC
Color
Green
Conductor Material
Brass
Mounting
Gender Reversing, Male-Male
Amps AC
150 A
Housing Color
Green
NEMA Enclosure Rating
12, 3R, 4X
Maximum Operating Temperature
75 Degrees C
Gender Configuration
Male-Male
For Environment
Dry
Housing Material
Thermoplastic Elastomer
Minimum Operating Temperature
-40 Degrees C
Compatible with Series
15
Contact Material
Brass
Number Of Poles
1-Pole
Item Type
Double Male Coupler
Insulation
Insulated Body
Number Of Conductors
1 Conductor
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Style
Male-Male
Current / Amperage Rating
150 A
Application
Temporary Electrical Power
Material - Mounting Hardware
Cord Mounted
Amperage Rating
150 A
Voltage Rating Description
600V AC/DC
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Connectivity
Plug-In

Description

The HUBBELL Double Connector, Series 15, is a double male coupler intended for use in temporary electrical power distribution. This single pole device features a taper nose style and is rated for up to 150 A at 600V AC or 250V DC. It utilizes plug-in connectivity with brass contacts and conductor material, housed in a thermoplastic elastomer body that features an insulated body constructed from thermoplastic elastomer. The connector is suitable for use in dry indoor locations unless additional protection is provided.


Key Features of the HUBBELL Double Connector:

  • Amperage/Voltage Rating: Rated for 150 A at 600V AC or 250V DC

  • Connector Type: Double Male Coupler (Gender Reversing), Single Pole

  • Material: Brass contact/conductor; Thermoplastic elastomer housing

  • Mounting: Cord mounted design compatible with Series 15 devices

  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements

  • Temperature Range: Operates from -40°C to +75°C (continuous)

  • Standards Compliance: UL/cUL Listed; conforms to NEC, ANSI/NFPA70; fits UL1691

  • Insulation: Insulated body construction
