  9. Double Connector, 600VAC/250VDC, White

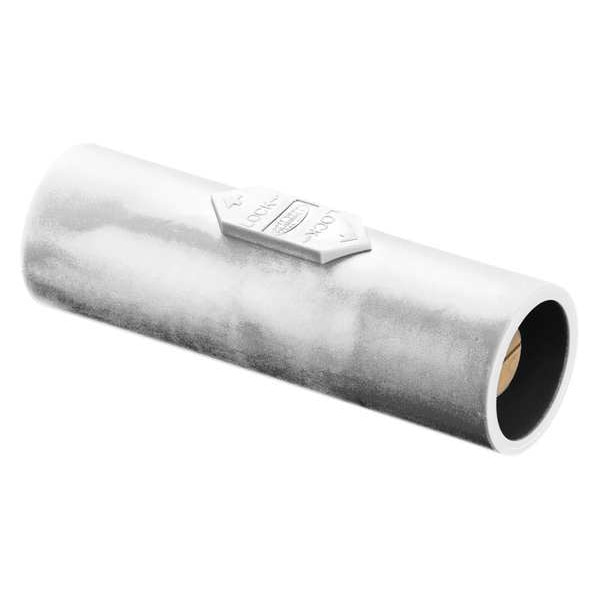

Hubbell Wiring Device-Kellems Double Connector, 600VAC/250VDC, White HBLDMW - main

Double Connector, 600VAC/250VDC, White

  • Mfr # HBLDMW

  • Zoro # G7218251

product price: $66.59
/ea

Key Features

Type
Disconnect Switches
Series
16
Male/Female
Male-Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLDMW
Zoro #
G7218251
UPC #
783585002712
Country of Origin
China

Dimensions

Overall Width
1.54 in
Overall Height
4.65 in

Details

Item
Double Connector
Type
Disconnect Switches
Series
16
Male/Female
Male-Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Amps AC/DC
300/400AC/DC
Single Pole Device Style
Taper Nose
Fits
UL1691
Color
White
Material
Thermoplastic Elastomer
Standards
cUL, UL
Gender Configuration
Male-Male
Housing Color
White
Minimum Operating Temperature
-40 Degrees C
Housing Material
Thermoplastic Elastomer
Contact Material
Brass
Compatible with Series
16
NEMA Enclosure Rating
12, 3R, 4X
Maximum Operating Temperature
75 Degrees C
Phase
Three Phase
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact Maximum continuous 75°C and minimum -40°C without Impact
Enclosure Type
Type 4X, IP69k
Item Type
Gender Reverser
Wattage
360000
Voltage Rating Description
600V AC/DC
Number Of Pins
1) In, 1) Out
Current / Amperage Rating
400 A
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device
Amperage Rating
100 A
Industry Standard(s)
UL 498 And UL1691
Insulation
Insulated Body
Application
High Ampacity

Description

Double Connector, Contact Material Brass, Current Rating 400 A, Gender Configuration Male-Male, Housing Color White, Housing Material Thermoplastic Elastomer, NEMA Enclosure Rating 12, 3R, 4X, Voltage Rating 600V AC, 600V DC, Compatible with Series 16, Maximum Operating Temperature 75 Degrees C, Minimum Operating Temperature -40 Degrees C, Overall Height 4.65 in, Overall Width 1.54 in
