Shop HUBBELL WIRING DEVICE-KELLEMS

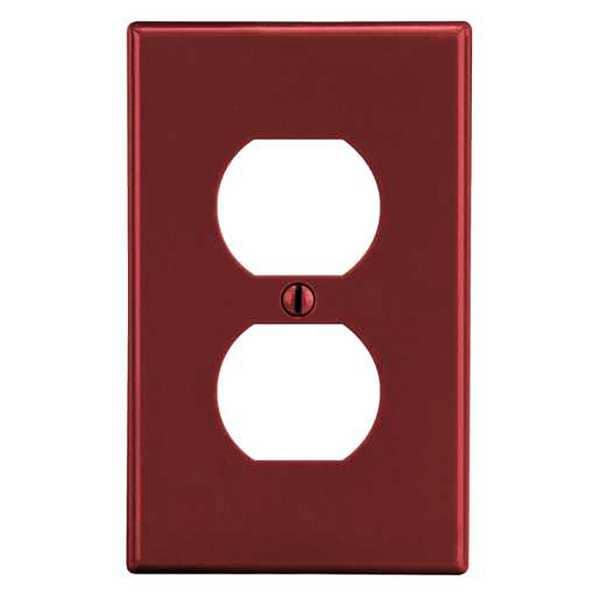

Duplex Receptacle Wall Plate, Number of Gangs: 1 Plastic, Satin Finish, Red

  • Mfr # PJ8R

  • Zoro # G2481572

product price:  $1.03
/ea

Key Features

Number of Gangs
1
Material
Polycarbonate
Finish
Satin
Tamper Resistant
No
Width
3.15 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PJ8R
Zoro #
G2481572
UPC #
-
Country of Origin
China

Dimensions

Size
Mid Size
Width
3.15 in
Length
4.94 in
Height
0.25 in
Overall Depth
0.3 in
Overall Height
4.94 in
Overall Width
3.15 in
Plate Size
Midsize
Dimensions
4.94 in x 3.15 in x 0.25 in
Mount Hole Center-to-Center Height
3.28 in

Details

Item
Wall Plate
Number of Gangs
1
Color
Red
Material
Polycarbonate
Finish
Satin
Tamper Resistant
No
Type
Duplex
Standards
cULus Listed
Mounting Type
Painted Steel
For Use With
Receptacle
Resistance Properties
Impact Resistant
Material Type
Non-Metallic
Outlet Orientation
Vertical
Number of Switch Openings
0
Wall Plate Type
Duplex Outlet
Number of Outlet Openings
1
UL 94 Flammability Rating
V-2
Mounting Method
Screw
Number of Gang(s)
1-Gang
UL File Number
UL 94 V2
Cutout
Duplex
Orientation
Vertical
Certification - cULus
Yes
Nema Color
Red
Application
For use with Receptacle
Style
1-Duplex
Compatible Product Type
Receptacles
Number of USB Openings
0
Mount Type
Flush

Description

Hubbell's line of polycarbonate wallplates features larger standard sized wallplates to provide extra coverage to hide rough box opening, improved aesthetics, greater strength, impact resistance, along with easy to clean finish in all different types of environments. Hubbell’s standard sized wallplates are 1/8 inch larger to provide you that extra coverage to hide rough box openings. The depth is 1⁄4 inch so that it will comfortably fit over the device even on imperfect installations or on retrofit work.
• High-impact, self-extinguishing polycarbonate material
• More Rigid
• Sharp lines and less dimpling
• Smooth satin finish
• Blends into wall with an optimum finish
• Captive screw feature on single-gang versions, hold screws in place for quick installation
