  6. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

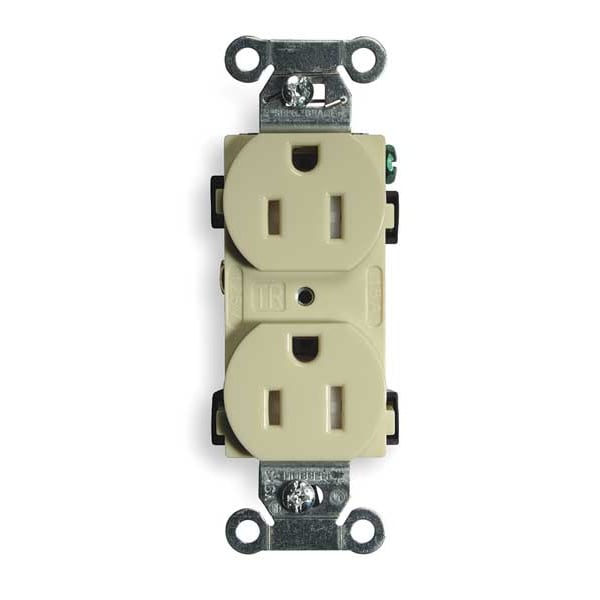

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15ITR - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15ITR

  • Zoro # G1835556

product price:  $8.03
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BR15ITR
Zoro #
G1835556
UPC #
783585144085
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.2 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-15
Sub-Category
Duplex Receptacles
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
No
Outlet Type
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Tamper Resistant
Yes
Application Environment
Commercial
HP
1/2 hp
Material
Nylon
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method
Back, Side
Corrosion Resistant
No
Mounting Type
Flush
Weather Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Number of Gangs
1
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage
125VAC
Type
Duplex
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Housing Material
Nylon
NEMA Enclosure Rating
1
For Location
Indoor
Cover Type
No Cover
Connection Orientation
Straight
AFCI
No
Grade
Federal Specification
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Shrouded
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Surge Protection
No
Market
Commercial, Industrial
GFCI
No
Horsepower Rating
1/2 hp
Minimum Operating Temperature
-40 Degrees F
Receptacle Style
Duplex
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts Material
.030" (.8) Brass
Flammability
UL 94 V2.
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Mounting Strap Material
.040" (1) Steel (Galvanized)
Poles and Wires
2 Pole, 3-Wire Grounding
Auto Ground Clip Material
Stainless Steel
Standard
NEMA
Horsepower
0.5
Device Color
Ivory
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Face Shape
Traditional
Dielectric Voltage
Withstands 2,000V minimum
Top Material
Nylon
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Base Material
Nylon
Receptacle Grade
Specification Grade Commercial Series, Tamper Resistant
Mounting Screw Material
Steel-Zinc Plated
Rating
15A, 125V
Current Interrupting
Certified for current interrupting at full rated current

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a tamper-resistant duplex receptacle intended for indoor use. It features a smooth nylon face and wrap-around galvanized steel straps for added durability. This receptacle is grounded, rated for 15 amps at 125 volts AC, and supports both back and side wiring methods with screw terminals.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Tamper Resistant: Integrated shutters are present on the device.

  • Electrical Rating: Rated for 15A, 125V AC; NEMA configuration 5-15R.

  • Material Construction: Nylon housing with brass power contacts and galvanized steel mounting strap.

  • Wiring Compatibility: Accepts #14–#10 AWG copper stranded or solid conductors; supports back and side wiring methods.

  • Mounting Type: compatible with single-gang applications; includes grounding staple and mounting hardware.

  • Certification & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), meets Federal Specification WC596G, NEMA WD-6 compliant.

  • Operating Temperature Range: rated for operation within -40°F to +167°F (-40°C to +75°C).
