  11. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

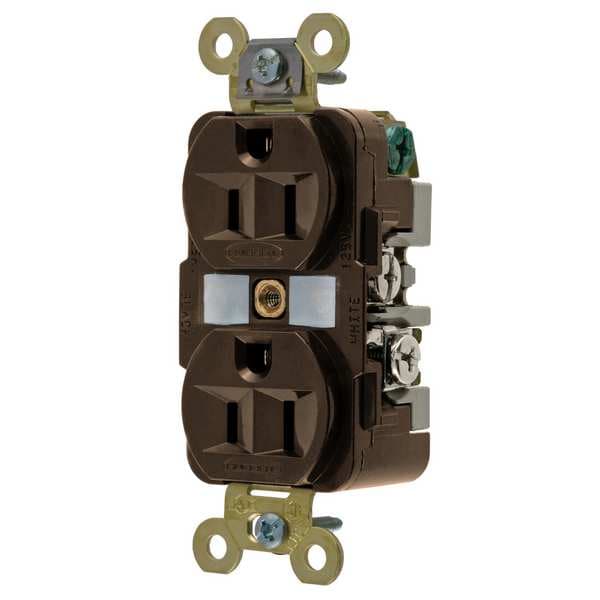

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5262 - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5262

  • Zoro # G1391372

product price: $26.80
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5262
Zoro #
G1391372
UPC #
783585435107
Country of Origin
United States

Dimensions

Height
1.19 in
Length
3.28 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.65 in x 1.19 in
Width
1.65 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.7 in
Minimum Wire Size
14 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, Fed. Spec. W-C-596, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Power Indicator
No
NEMA Configuration
5-15
HP
1/2 hp
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Color
Brun
Application Environment
Harsh and Heavy Use Industrial
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Tamper Resistant
No
Outlet Type
Duplex
Weather Resistant
No
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Material
Nylon
Voltage
125VAC
Amperage
15 A
Mounting Hardware Material
Screw Mounting
Application
Extra Heavy Duty Specification Grade
Connectivity
Back and Side Wired
Maximum Horsepower
0.5
Type
Standard Duplex
Series
Extra Heavy Duty
Weight
0.25 lb
Number Of Wires
3-Wire
UPC
783585000000
Wattage
1875 W
Nema Rating
5-15R
Brand
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Carton Quantity
10
Style
Finder Groove Face
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Dielectric Strength
Withstands 2,000V minimum
Minimum Operating Temperature
-40 Degrees F
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Grade
Federal Specification
Contact Material
Nickel-Plated Brass
Housing Material
Nylon
Cover Type
No Cover
AFCI
No
Polarized
Yes
Connection Orientation
Straight
NEMA Enclosure Rating
1
Shrouded
No
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Market
Industrial
GFCI
No
Surge Protection
No
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-0, V-2
Horsepower Rating
1/2 hp
Device Color
Brown
Receptacle Style
Duplex
Current Interrupting
Certified for current interrupting at full rated current
Rating
15A, 125V
Poles and Wires
2 Pole, 3-Wire Grounding
Top Material
Nylon
Standard
NEMA
Base Material
Reinforced PET
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Receptacle Grade
Extra Heavy Duty Spec Grade
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Mounting Screw Material
Steel-Zinc Plated
Mounting Strap Material
.050" (1.3) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Face Style
Finder Groove
Horsepower
0.5
Auto Ground Clip Material
Stainless Steel
Dielectric Voltage
Withstands 2,000V minimum
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Flammability
UL 94 V2 or better, Top: UL 94V-2, Base: UL 94V-0
Face Shape
Traditional
Power Contacts Material
.037" (.9) Brass
Ground Screw Material
#10-32 Silicon Bronze (Green)
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R BN is a traditional duplex straight blade receptacle suitable for specification grade applications. This device features a standard NEMA 5-15R configuration; rated for 15 amps and 125 volts AC. It is suitable for flush mounting in indoor dry locations and compatible with back and side wiring methods using screw terminals, accepts #14 to #10 AWG copper conductors.


Key Features of the HUBBELL - 15A Duplex Receptacle:

  • Amperage/Voltage: Rated for 15 A, 125 VAC

  • NEMA Configuration: Standard NEMA 5-15R duplex outlet

  • Wiring Method: Back and side wired; accepts #14–#10 AWG copper wire

  • Material Construction: Nylon housing with reinforced PET base; nickel-plated brass contacts

  • Mounting Type: Flush mount with included screw hardware

  • Grounding: Includes stainless steel auto ground clip and silicon bronze ground screw

  • Certification & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596, NEMA WD-6 compliant

  • Operating Temperature Range: -40°C to +75°C

  • Dielectric Strength & Flammability Rating: Withstands minimum of 2,000V; UL94 V0/V2 flammability rating
