  6. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

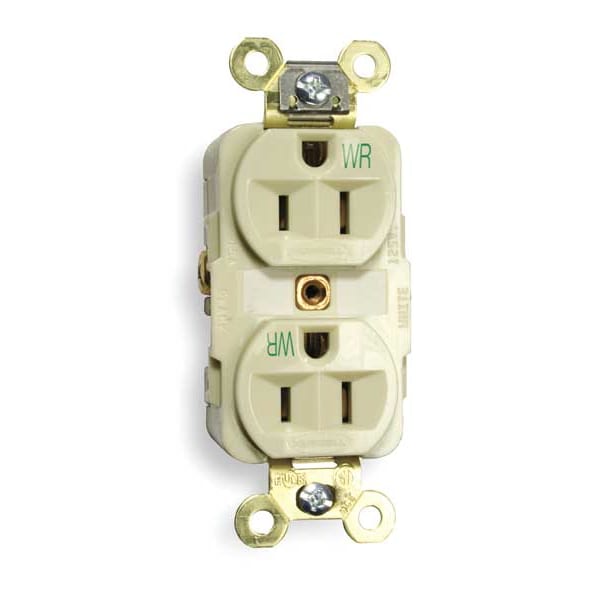

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5262IWR - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5262IWR

  • Zoro # G3451253

product price:  $29.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5262IWR
Zoro #
G3451253
UPC #
783585320502
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.65 in
Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.65 in x 1.19 in
Overall Depth
1.2 in
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-15
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
Yes
Power Indicator
No
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Duplex
Tamper Resistant
No
Weather Resistant
Yes
Color
Ivory
Surge Suppression
No
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Material
Nylon/Reinforced PET
Application Environment
Harsh and Heavy Use Industrial
Number of Gangs
1
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Corrosion Resistant
No
Voltage
125VAC
Connectivity
Back and Side Wired
Carton Quantity
10
Brand
Hubbell Wiring Device-Kellems
Application
Extra Heavy Duty Specification Grade
Number Of Wires
3-Wire
Wattage
1875 W
UPC
783585000000
Maximum Horsepower
0.5
Environmental Rating
Weather Resistant
Dielectric Strength
Withstands 2,000V minimum
Type
Weather Resistant
Nema Rating
5-15R
Series
Extra Heavy Duty
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Mounting Hardware Material
Screw Mounting
Amperage
15 A
Style
Finder Groove Face
Weight
0.25 lb
Grade
Federal Specification
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon, Reinforced PET
Contact Material
Nickel-Plated Brass
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-0, V-2
AFCI
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Cover Type
No Cover
Connection Orientation
Straight
NEMA Enclosure Rating
1
Market
Industrial
GFCI
No
Shrouded
No
Power Contacts Material
.037" (.9) Brass
Ground Screw Material
#10-32 Silicon Bronze (Green)
Dielectric Voltage
Withstands 2,000V minimum
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Device Color
Ivory
Flammability
UL 94 V2 or better, Top: UL 94V-2, Base: UL 94V-0
Receptacle Style
Duplex
Top Material
Nylon
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Base Material
Reinforced PET
Rating
15A, 125V
Face Style
Finder Groove
Auto Ground Clip Material
Stainless Steel
Receptacle Grade
Extra Heavy Duty, Weather Resistant
Standard
NEMA
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Mounting Strap Material
.050" (1.3) Brass
Horsepower
0.5
Mounting Screw Material
Steel-Zinc Plated
Face Shape
Traditional
Current Interrupting
Certified for current interrupting at full rated current
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Weather Resistant
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a traditional duplex outlet suitable for heavy-duty applications. Rated for 15 amps and 125 volts, this receptacle includes weather-resistant construction appropriate for industrial environments. It includes both back and side wiring options to accommodate #14–#10 AWG copper conductors, with a flush mount design for standard installations.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Amperage/Voltage: Rated at 15 A, 125 VAC

  • NEMA Configuration: 5-15R (2-pole, 3-wire grounding)

  • Weather Resistant: Constructed with materials rated for exposure to environmental factors

  • Material Construction: Nylon face/top with reinforced PET base; nickel-plated brass contacts

  • Wiring Method: Back and side wired screw terminals support #14–#10 AWG copper wire

  • Mounting Type: Flush mount with included mounting hardware

  • Face Style: Finder Groove face aids in installation identification

  • Circuit Identification Face: Deep body design allows circuit labeling on device face

  • Certifications/Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification WC596G, NEMA WD-6 compliant
