Shop HUBBELL WIRING DEVICE-KELLEMS

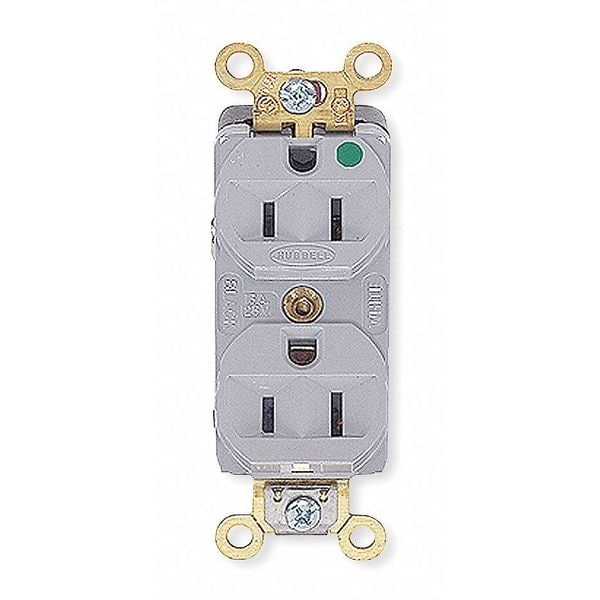

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8200HG
  • Zoro # G2879852
product price:
$
28.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL8200HG
Zoro #
G2879852
UPC #
783585016191
Country of Origin
United States
Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Application Environment
Heavy Use Hospital Grade
Material
Thermoplastic
Number of Gangs
1
Corrosion Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
HP
1/2 hp
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type
Duplex
NEMA Configuration
5-15
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type
Flush
Tamper Resistant
No
Surge Suppression
No
Voltage
125VAC
Weather Resistant
No
Sub-Category
Duplex Receptacles
Amperage
15 A
Style
Finder Groove Face
Mounting Hardware Material
Screw Mounting
Carton Quantity
10
Type
Receptacle
Nema Rating
5-15R
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Wattage
1875 W
Series
Hospital Grade
Brand
Hubbell Wiring Device-Kellems
Application
Slender/Compact Hospital Grade
Connectivity
Back and Side Wired Screw Terminals
Maximum Horsepower
0.5
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Number Of Wires
3-Wire
Shrouded
No
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
V-0
Connection Orientation
Straight
Grade
Hospital Grade Fed. Spec.
Maximum Operating Temperature
167 Degrees F
Includes Mounting Hardware
Yes
AFCI
No
GFCI
No
Contact Material
Brass
Surge Protection
No
Cover Type
No Cover
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Market
Commercial
Polarized
Yes
Housing Material
Thermoplastic
Horsepower Rating
1/2 hp
For Location
Indoor
Flammability
UL 94 V-0
Poles and Wires
2 Pole, 3 Wire
Certifications
FED SPEC Listed
Dielectric Voltage
Withstands 2,000V minimum
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Grade
Compact Slender
Current Interrupting
Certified for current interrupting at full rated current
Device Color
Gray
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Number of Outlets
2
Hub Type
Feed Through
Status Indicator Lights
None

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R GY is a hospital grade, traditional duplex receptacle suitable for use in commercial and healthcare environments. It features a slender, compact design with a thermoplastic housing and triple wipe brass contacts to provide reliable electrical connections. The device supports both back and side wiring methods using screw terminals, accommodating #14–#10 AWG copper wire.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Amperage/Voltage: Rated for 15 A at 125 V AC

  • NEMA Configuration: 5-15R (2-pole, 3-wire grounded)

  • Device Grade: Hospital Grade Fed. Spec., suitable for high-abuse areas

  • Material: Thermoplastic housing with brass contacts

  • Wiring Method: Back and side wired screw terminals; accepts #14–#10 AWG copper wire

  • Mounting Type: Flush mount with included mounting hardware

  • Dielectric Strength: Withstands minimum of 2,000V

  • Flammability Rating: UL 94 V-0 rated material

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Certifications/Standards: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6; UL Listed to UL498 File E2186
