  6. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

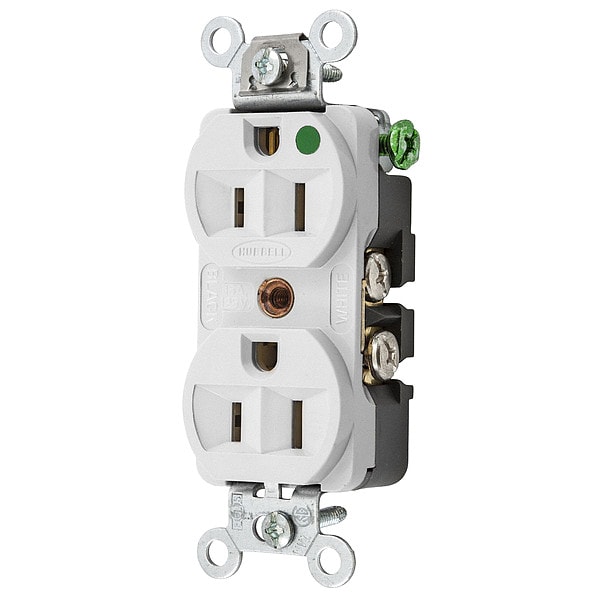

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8200HW - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8200HW

  • Zoro # G2246142

product price:  $28.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL8200HW
Zoro #
G2246142
UPC #
783585016207
Country of Origin
United States

Dimensions

Wire Size
#14 AWG to #10 AWG
Display Size
Slender/Compact
Dimensions
3.28 in x 1.33 in x 1.05 in
Overall Depth
1.1 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Height
1.05 in
Length
3.28 in
Width
1.33 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
C22.2 No. 42 File 285, CSA Certified, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage
125VAC
Material
Thermoplastic
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
Number of Gangs
1
NEMA Configuration
5-15
Tamper Resistant
No
Outlet Type
Duplex
Weather Resistant - Plugs and Receptacles
No
Sub-Category
Duplex Receptacles
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Back and Side
HP
1/2 hp
Weather Resistant
No
Color
Blanc
Mounting Type
Flush
Corrosion Resistant
No
Application Environment
Heavy Use Hospital Grade
Outlet Type - Plugs and Receptacles
Standard Duplex
Brand
Hubbell Wiring Device-Kellems
Mounting Hardware Material
Screw Mounting
Style
Finder Groove Face
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating
5-15R
Type
Receptacle
Series
Hospital Grade
Maximum Horsepower
0.5
Amperage
15 A
Application
Slender/Compact Hospital Grade
Number Of Wires
3-Wire
Wattage
1875 W
Carton Quantity
10
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired Screw Terminals
Contact Material
Brass
Grade
Hospital Grade Fed. Spec.
Connection Orientation
Straight
Shrouded
No
Housing Material
Thermoplastic
NEMA Enclosure Rating
1
Market
Commercial
Polarized
Yes
Surge Protection
No
GFCI
No
Maximum Operating Temperature
167 Degrees F
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
Horsepower Rating
1/2 hp
Includes Mounting Hardware
Yes
Cover Type
No Cover
AFCI
No
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-40 Degrees F
Device Grade
Compact Slender
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Device Color
White
Poles and Wires
2 Pole, 3 Wire
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Certifications
FED SPEC Listed
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Voltage
Withstands 2,000V minimum
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94 V-0
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a hospital grade, suitable for use in commercial environments. It features a slender, compact design with an impact-resistant thermoplastic housing with finder groove face to help prevent breakage. This device is rated for 15 amps at 125 volts AC, supports both back and side wiring methods, and accommodates #14 to #10 AWG copper wire. The receptacle complies with federal specifications for hospital grade devices and includes grounding staple, mounting hardware, and wall plate or weatherproof cover.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Hospital Grade: Complies with FED SPEC Listed requirements; features heavy-duty construction.

  • Electrical Ratings: Rated for 15 A at 125 V AC; NEMA configuration 5-15R; maximum wattage of 1875 W.

  • Wiring Options: Back and side wired screw terminals support stranded or solid copper wire (#14–#10 AWG).

  • Grounding: Four-point grounding system

  • Impact Resistance: Thermoplastic housing with deep face design enhances durability against physical abuse.

  • Dielectric Strength & Flammability: Withstands minimum dielectric voltage of 2,000V; UL94 V-0 flammability rating.

  • Operating Temperatures: Suitable for continuous operation up to 75°C (167°F) and down to -40°C (without impact).

  • Certifications & Standards: CSA Certified C22.2 No.42 File285; Federal Specification W-C-596; NEMA WD-6; UL498 File E2186 compliant.
